PCIE3.0-1X TO 6 SATA3 Expansion

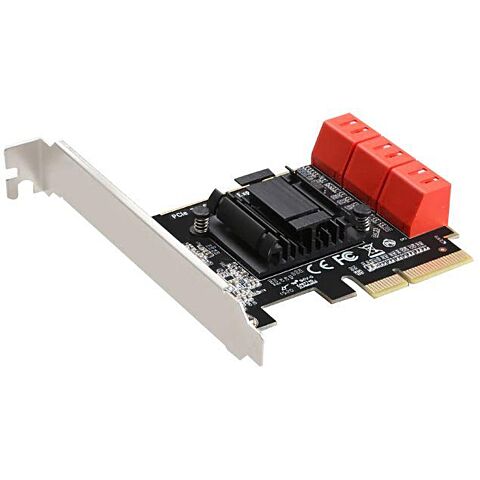

PCIE3.0-1X TO 6 SATA3 EXPANSION - TXB113

The TXB113 Is 6-Port SATA III (6 Gbps) To PCI Express x2 Gen 3 Host Card

It Adds 6 AHCI SATA III Port To Computer Though A PCIe Slot (x4)

Delivering Multiple Internal 6Gbps Connections for High Performance Hard Drives and Solid-State Drives (SSDs)

With full Support for SATA 3.0 Hard Drives and Data Transfer Speeds of up to 6Gbps

The Adapter Card Feature a native PCI Express Single Chipset that provides Enhanced Compatibility

Reliability and Performance for Internal SATA 600 MB/s Storage needs

Features

6 AHCI SATA III (6 Gbps) Ports Through PCI Express x4

Fully Compliant with SATA 3.0 Specifications and Backward Compatible with SATA I/II (1.5/3.0Gbps) Drives

Compliant with PCI Express 3.0 Standards

Port Multiplier Command-Based Switching Supported

Natively Supported single Chipset Design

Support Native Command Queuing (NCQ)

Support SSC for both PCIe and SATA

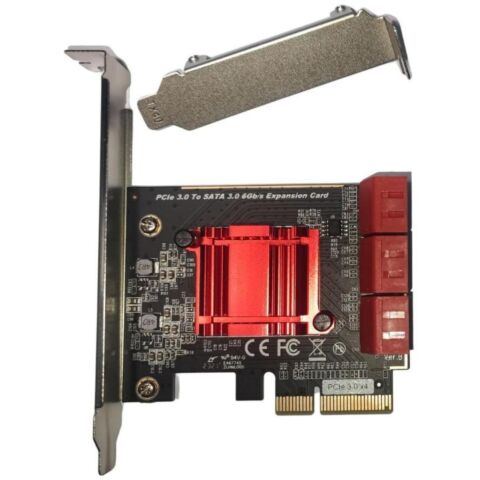

Includes Low Profile/Half-Height Installation Bracket

Data Sheet: Hardware

Bus Type:  PCI Express x4

Card Type:  Standard/Low Profile

Chipset ID: ASMedia - ASM1166

Interface: SATA

Ports: 6

Performance

Bootable: Yes

Hot Swap Capability: Yes

Port Multiplier: Yes

Type And Rate: SATA III (6 Gbps)

Connector(s)

Connector Type(s): 1 - PCI Express x 4 Male

Internal Ports: 4 - SATA (7 pin, Data) Plug

Software / OS Compatibility

Windows 7, 8.x, 10

Windows Server 2008 R2, 2012, 2016,2019

Linux 2.6.x to 4.x

Special Notes / Requirements

System And Cable Requirements

PCI Express enabled Computer with an available PCI Express x4, x8 or x16 slot

Environmental Humidity: 20 - 80% RH

Operating Temperature: 5 to 50 (41 to 122)

Storage Temperature: -25 to 70 (-13 to 158)

Physical Characteristics

Product Height: 120 mm

Product Length: 88 mm

Product Weight: 41 g

Product Width: 22 mm

What's In The Box Included

In Package

1 PCIe SATA Controller Card

1 Low Profile Bracket
