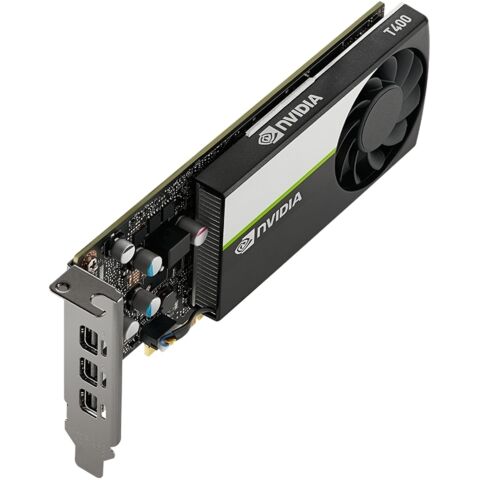

PNY nVidia Quadro T400 4GB GDDR6 PCI-e 3.0 x16 Graphics card 3x mDP

PNY nVidia Quadro T400 4GB GDDR6 PCI-e 3.0 x16 Graphics card, 4GB GDDR6 GPU Memory, 64-bit Memory Interface, 16x PCI Express 3.0, 3x Mini DisplayPort connectors, 7680x4320 at 60 Hz, HDR support, Low-Profile single slot, Active fansink

Features:

Turing GPU Architecture
Based on state-of-the-art 12nm FFN (FinFET NVIDIA) high-performance manufacturing process customized for NVIDIA to incorporate 384 CUDA cores, the NVIDIA T400 4GB GPU is an efficient low-profile, single-slot professional solution for CAD, DCC, financial service industry (FSI) and visualization professionals looking for great performance in a compact form factor.

Advanced Shading Technologies
The Turing GPU architecture features the following new advanced shader technologies.
Mesh Shading: Compute-based geometry pipeline to speed geometry processing and culling on geometrically complex models and scenes. Mesh shading provides up to 2x performance improvement on geometry-bound workloads.
Variable Rate Shading (VRS): Gain rendering efficiency by varying the shading rate based on scene content, direction of gaze, and motion. Variable rate shading provides similar image quality with 50% reduction in shaded pixels.
Texture Space Shading: Object/texture space shading to improve the performance of pixel shader-heavy workloads such as depth-of-field and motion blur. Texture space shading provides greater throughput with increased fidelity by reusing pre-shaded texels for pixel-shader heavy VR workloads.

Advanced Streaming Multiprocessor (SM) Architecture
Combined shared memory and L1 cache improve performance significantly, while simplifying programing and reducing the tuning required to attain best application performance. Each SM contains 96 KB of L1 shared memory, which can be configured for various capabilities depending on compute or graphics workload. For compute cases, up to 64KB can be allocated to the L1 cache or shared memory, while graphics workload can allocate up to 48 KB for shared memory; 32 KB for L1 and 16KB for texture units. Combining the L1 data cache with the shared memory reduces latency and provide higher bandwidth.

High Performance GDDR6 Memory
Built with Turings vastly optimized GDDR6 memory subsystem for outstanding performance the NVIDIA T400 features 4GB of GPU memory and 80 GB/s of peak bandwidth, more than double the previous generations capacity and throughput. NVIDIA T400 4GB is an ideal platform for 3D professionals and multi-display environments, where integrated graphics simply isnt adequate.

Single Instruction, Multiple Thread (SIMT)
New independent thread scheduling capability enables finer-grain synchronization and cooperation between parallel threads by sharing resources among small jobs.

Mixed-Precision Computing
Double the throughput and reduce storage requirements with 16-bit floating point precision computing to enable the training and deployment of larger neural networks. With independent parallel integer and floating-point data paths, the Turing SM is also much more efficient on workloads with a mix of computation and addressing calculations.

Graphics Preemption
Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.

Compute Preemption
Preemption at the instruction-level provides finer grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.

H.264 and HEVC Encode/Decode Engines
Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with two dedicated H.264 and HEVC encode engines and a dedicated decode engine that are independent of 3D/compute pipeline.

NVIDIA GPU BOOST 4.0
Automatically maximize application performance without exceeding the power and thermal envelope of the card. Allows applications to stay within the boost clock state longer under higher temperature threshold before dropping to a secondary temperature setting base clock.

Full-Scene Antialiasing (FSAA)
Dramatically reduce visual aliasing artifacts or "jaggies" with up to 64x FSAA (128x with SLI) for unparalleled image quality and highly realistic scenes.

32K Texture and Render Processing
Texture from and render to 32K x 32K surfaces to support applications that demand the highest resolution and quality image processing.

NVIDIA Mosaic Technology
Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

DisplayPort 1.4
Support up to four 5K monitors at 60Hz, or dual 8K displays per card. NVIDIA T400 supports 3x native displays, HDR color for 4K at 120Hz for 10/12b HEVC decode and up to 4K at 60Hz for 10b HEVC encode. Each DisplayPort connector is capable of driving ultra-high resolutions of 4096 x 2160 at 120 Hz with 30-bit color.

NVIDIA RTX Desktop Manager
NVIDIA RTX Desktop Manager software allows you to manage single or multi-monitor workspaces with ease, giving you maximum flexibility and control over your display real estate and desktops.

OpenGL Quad Buffered Stereo Support
Provide a smooth and immersive 3D Stereo experience for professional applications.

NVIDIA Enterprise Management Tools
Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.

NVIDIA CUDA Parallel Computing Platform
Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.

Unified Memory
Featuring concurrent execution of floating point and integer operations, adaptive shading technology, and a new unified memory architecture with twice the cache of its predecessor, Turing shaders enable awesome performance increases for todays professional applications.

Specifications:

CUDA Cores 384
GPU Memory 4 GB GDDR6
Peak FP32 Performance 1.094 TFLOPS
Memory Interface 64-bit
Memory Bandwidth 80 GB/s
Max Power Consumption 30 W
System Interface PCI Express 3.0 x16
Display Connectors 3x mDP
Max Digital Resolution 7680 x 4320 at 60 Hz
Max Displays 4x at 5K, 5120 x 2880 at 60 Hz
HDR Support Yes
Quad Buffered Stereo Yes
NVENC, NVDEC 2x H.264 and HVEC Encoders
1x Decode Engine
Form Factor Low-Profile Single Slot
Thermal Solution Active Fansink
