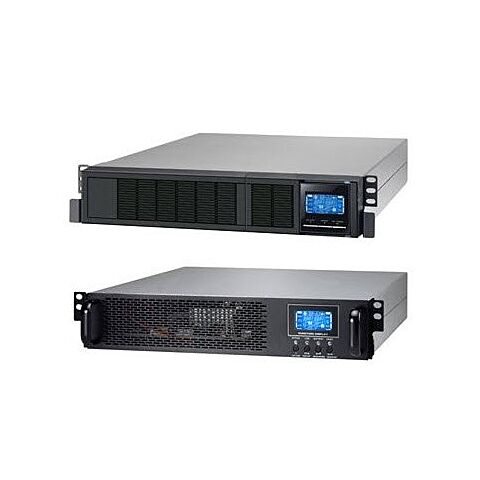

RCT 3000VA/2400W Online Rackmount UPS
RCT 3000VA/2400W Online Rackmount UPS. 12 V / 9 Ah batteries x6, Voltronic Power Winner Pro online pure sine wave UPS.
Specifications and features
Product Code RCT-3000-WPRUspacer
CAPACITY 3000 VA / 2400 W
PHASE Single phase with ground
INPUT
Input Voltage Range 55-150 VAC or 110-300 VAC (Based on load at 50%); 85-140VAC or 160-280VAC (Based on load at 100%)
Nominal Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Frequency Range 40Hz ~70 Hz
Power Factor >= 0.99 @ Nominal Voltage (100% load)
OUTPUT
Voltage Regulation ± 1%
Output Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Frequency Range (Batt. Mode) 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
Transfer Time : AC Mode to Battery Mode Zero
Transfer Time : Inverter to Bypass 4 ms (Typical)
Transfer Time : Waveform (Batt. Mode) Pure Sine Wave
Current Crest Ratio 3::1
Harmonic Distortion <= 3% THD (Linear Load); <= 6% THD (Non-linear Load)
Frequency Range (Synchronized Range) 47~53 Hz or 57~63 Hz
EFFICIENCY
Battery Mode 0.88
AC Mode 0.9
BATTERY
Long-run Model : Battery Type Depending on the capacity of external batteries
Long-run Model : Charging Current (max.) 1A/2A/4A/6A (Adjustable)
Long-run Model : Charging Voltage 82.1 VDC ± 1% ,109.4 VDC ± 1%
Long-run Model : Numbers 6, 8
Standard Model : Battery Type 12 V / 9 AH
Standard Model : Charging Current (max.) 1A
Standard Model : Charging Voltage 82.1 VDC ± 1%
Standard Model : Numbers 6
Standard Model : Typical Recharge Time 4 hours recover to 90% capacity
INDICATORS
LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously sounding
ENVIRONMENT
Operating Humidity 20~90% RH @ 0- 40°C (non-condensing)
Noise Level Less than 50dB @ 1 Meter
PHYSICAL
Standard Model : Dimension, D x W x H (mm) 630 x 438 x 88 [2U]
Standard Model : Net Weight (kgs) 29.3
Long-run Model : Dimension, D x W x H (mm) 410 x 438 x 88 [2U]
Long-run Model : Net Weight (kgs) 14.2
MANAGEMENT
Optional SNMP Power management from SNMP manager and web browser
Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, and MAC
