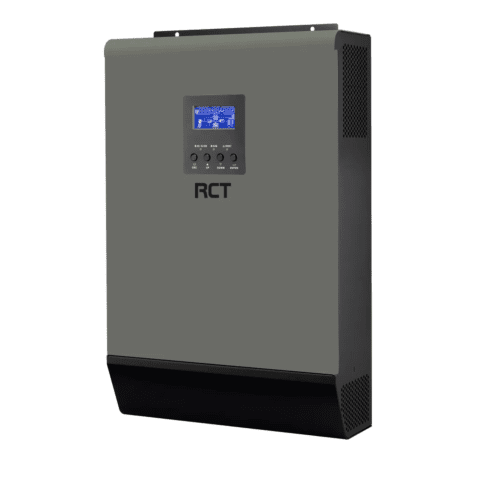

RCT Axpert MKS II 5KVA/5KW Inverter 48VDC with 4500W 450VDC MPPT Charger and Parallel Kit
Rated Power 5000VA / 5000W
Maximum PV Array Power 4500W
MPPT Range @ Operating Voltage 120VDC~430VDC
Maximum PV Array Open Circuit Voltage 450VDC
Maximum Solar Charge Current 80A
Maximum AC Charge Current 80A
Maximum Charge Current 80A
Main Features
Pure sine wave inverter
Output power factor 1
Built in high voltage range MPPT solar charge controller
Selectable input voltage range for home appliances and personal computers
Selectable charging current based on application
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Battery equalization for optimized battery performance and lifecycle
Cold start function
Built in parallel kit enabling parallel operation with up to 9 units
