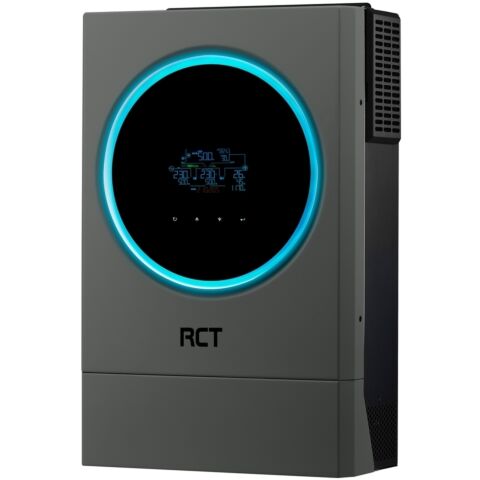

RCT Infinisolar V4 5.6K 5600VA / 5600W Pure Sine Wave Grid Tied MPPT Inverter

Special Price R 13,810.00 Regular Price R 18,835.00
In stock
SKU
RCT-INFINISOLAR V4 5.6K-48V
  • Brands - Cliqtosave Online: RCT

RCT Infinisolar V4 5.6K 5600VA / 5600W Pure Sine Wave Grid Tied MPPT Inverter charger 48V, Built-in Wi-Fi, Parallel operation with up to 9 units, 5600 W Maximum PV Input power, 280 VDC ~ 500 VDC MPPT voltage range, 1x MPPT trackers, Requires 48V DC battery

More Information
BrandRCT
Supply TypeInverters

Details

RCT Infinisolar V4 5.6K 5600VA / 5600W Pure Sine Wave Grid Tied MPPT Inverter charger 48V, Built-in Wi-Fi, Parallel operation with up to 9 units, 5600 W Maximum PV Input power, 280 VDC ~ 500 VDC MPPT voltage range, 1x MPPT trackers, Requires 48V DC battery

Overview:

InfiniSolar V IV - Customizable status LED ring with RGB lights
InfiniSolar V IV is an upgraded version of the third generation of our InfiniSolar V. Equipped with a 4.3-inch color LCD, touchable button, and a customizable status LED ring with RGB lights. The high PV voltage range can be accepted, which will facilitate PV system installation. Besides, battery independency feature will keep inverter running no matter battery is connected or not. We also offer parallel operation function up to 9 units for 3.6KW, and 5.6KW. It offers high flexibility for future power expansion.

Features:

Customizable status LED ring with RGB lights
Touchable button with 4.3 colored LCD
Supports USB On-the-Go function
Data log events stored in the inverter
Self-consumption and Feed-in to the grid
Programmable supply priority for PV, Battery or Grid
User-adjustable charging current and voltage
Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
Built-in Wi-Fi for mobile monitoring (Android/iOS App available)
Reserved communication port for BMS
Parallel operation up to 9 units

Specifications:

MODEL InfiniSolar V IV 5.6KW
Phase 6000 W
Maximum PV Input Power 5600 W
Rated Output Power 6000 W
Maximum Charging Power 5000 W
GRID-TIE OPERATION
PV INPUT (DC) 360 VDC / 450 VDC
Nominal DC Voltage / Maximum DC Voltage 120 VDC / 430 VDC
Start-up Voltage / Initial Feeding Voltage 110 VDC / 120 VDC
MPPT Voltage Range 280 VDC~500 VDC
Number of MPP Trackers/Max. Input Current 1/1x18A
GRID OUTPUT (AC)
Nominal Output Voltage 202/230/240 VAC
Output Voltage Range 24.3A
Nominal Output Current 15.6A
Power Factor > 0.9
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 96%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120-140 VAC / 180 VAC
Acceptable Voltage Range 90-280 VAC or 170-280 VAC
Maximum AC Input Current 40 A
PV INPUT (DC) 450 A
Maximum DC Voltage 500 A
MPPT Voltage Range 120 VDC~430 VDC
Number of MPP Trackers/Max. Input Current 1/1x18A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 202/230/240 VAC
Output Waveform Pure Sine Wave
Efficiency (DC to AC) 0.93
HYBRID OPERATION
PV INPUT (DC) 360 VDC / 450 VDC
Nominal DC Voltage / Maximum DC Voltage 360 VDC / 500 VDC
Start-up Voltage / Initial Feeding Voltage 110 VDC / 120 VDC
MPPT Voltage Range 120 VDC~430 VDC
Number of MPP Trackers/Max. Input Current 1/1x18A
GRID OUTPUT (AC) 24.3A
Nominal Output Current 15.6A
Nominal Output Voltage 202/230/240 VAC
Output Voltage Range 184-264.5 VAC or 195.5-253 VAC (Selectable)
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120-140 VAC / 180 VAC
Acceptable Voltage Range 90-280 VAC or 170-280 VAC
Maximum AC Input Current 40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 202/230/240 VAC
Efficiency (DC to AC) 0.93
BATTERY & CHARGER
Nominal DC Voltage 48 VDC
Maximum Charging Current 100 A
Maximum Solar Charging Current 100 A
Maximum AC Charging Current 100 A
GENERAL
PHYSICAL
Dimension, D X W X H (mm) 12
Net Weight (kgs) 11
INTERFACE
Communication Port USB/RS232/RS485/WiFi/Dry contact
Parallel Function Yes, 9 units
ENVIRONMENT
Operating Humidity 0~90% RH (Non-condensing)
Operating Temperature -10~50°C
