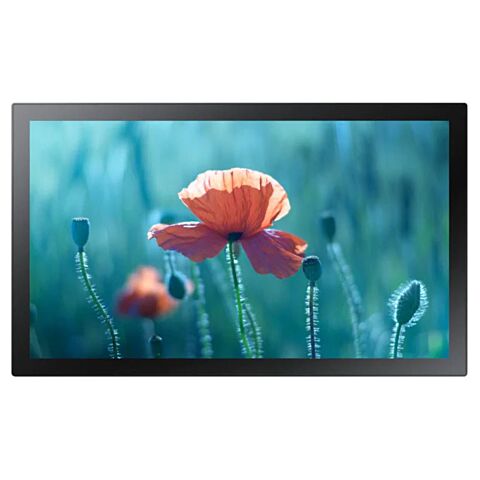

Samsung 13 inch Edge LED FHD 300 NIT 16/7 Hour Panel Touch

Samsung QB13R-T 13" EDGE LED FHD 300 NIT 16/7 HOUR PANEL TOUCH

Features:

Improved engagement with intuitive interaction
Samsung’s QB13R-T touch-enabled small display provides a unique store experience and improves customer engagement, offering customers content up close in a compact design. Designed for professional use, it enables efficient content operation and reliable performance for any business use.

Fast, effective touch capabilities
With integrated capacitive touch functionality, the QB13R-T provides a user-friendly experience. Its 10-point multi-touch and fast response time powers an intuitive interface that allows for customer-driven search and action, creating new customer interactions and driving purchase.

Crisp and visible content
The display supports 1920x1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

Slim, smart design
The compact and slim design of the QB13R-T allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.

Powerful content playback
With an embedded MagicINFO S player, backed by TIZEN, the QB13R-T allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

Comprehensive security setup
The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

Convenient, clean display control
With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn't require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance
The QB13R-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Specifications:

Display
Diagonal Size 13"
Panel Type ADS
Resolution 1,920 x 1,080
Pixel Pitch (HxV) 0.153 (H) x 0.153 (V)
Brightness (Typical) 250
Contrast Ratio 600::1
Viewing Angle (H/V) 178/178
Response Time 8 ms
Display Colour Black
Colour Gamut 0.45
Glass Haze 25 %, 10 %(glass)
H-Scanning Frequency 30~81 kHz
Maximum Pixel Frequency 594 MHz
V-Scanning Frequency 48~75 Hz
Dynamic Contrast Ratio 10000::1
Connectivity
HDMI In 1
DP In No
USB 2
IR In No
HDBaseT In No
Audio In No
Audio Out Stereo Mini Jack
Video Out No
RS232 In Yes
RS232 Out No
RJ45 In Yes
RJ45 Out No
WiFi Yes
3G Dongle No
Power
Power Supply AC 100-240 V 50/60 Hz
Power Consumption (On Mode) 27.5 W
Power Consumption (Sleep Mode) 0.5 W
Operation Conditions
Temperature 0 °C ~ 40 °C
Humidity 10 ~ 80 %, non-condensing
Dimension
Set Dimension (WxHxD) 322 x 193.5 x 29.8 mm
Package Dimension (WxHxD) 376 x 132 x 248 mm
Weight
Set Weight 1.1 kg
Package Weight 2.0 kg
Mechanical Specification
VESA Mount 100 x 100 mm
Bezel Width 13.1
Frame Material Non-Glossy
General Feature
External Memory Slot No
Optional Feature
Mount No
Stand Inbox(Simple Stand) (2ea)
Internal Player (MagicInfo)
MagicInfo Daisychain Videowall Support No
Eco
Energy Efficiency Class B
