Specification:

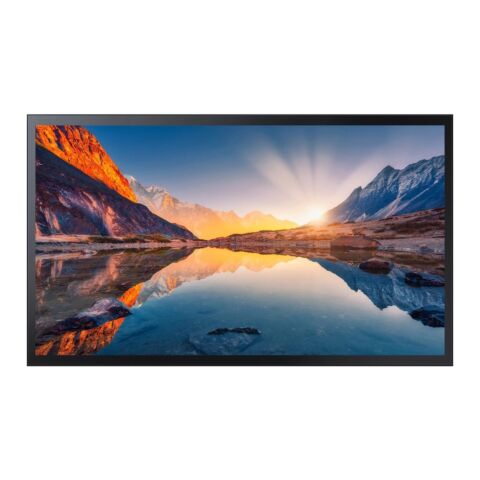

QM55B-T - All-in-One Touch Display for Business
• 55” Interactive Touch Screen Display.
• Incredibly clear screen with eye-catching 4K UHD picture quality.
• Improved visibility with non-glare panel for hyper-realistic, immersive visual experience.
• Easy content creation, scheduling and publication with MagicINFO.
Display
Screen Size
55"
Panel Technology
VA
Resolution
3,840 x 2,160
Brightness
500 nit (without Glass)
Contrast Ratio (Dynamic)
Mega
Viewing Angle (H/V)
178/178
Response Time
8ms
Operation Hours
24/7
Pixel Pitch (HxV)
0.315 x 0.315 (mm)
Brightness (Typical)
500(without Glass), 400(with glass) nit
Response Time (ms)
8ms
Color Gamut
92% (DCI-P3, CIE 1976) %
Glass Haze
25% (without glass) %
H-Scanning Frequency
30 ~ 81 kHz
Maximum Pixel Frequency
594MHz
V-Scanning Frequency
48 ~ 75 kHz
Operation Time Support
24/7
Connectivity
HDMI In
3
DP In
1
USB
2
IR In
Yes
Audio Out
Stereo Mini Jack
RS232 In
Yes
RS232 Out
Yes
RJ45 In
Yes
WiFi
Yes
Bluetooth®
Yes
Version of HDMI
2
Version of HDCP
2.2
Verison of DP
1.2
Power
Power Supply
AC 100 - 240 V, 50/60 Hz
Power Consumption (On Mode)
143W W
Power Consumption (Sleep Mode)
0.5W W
Max[W/h]
143
Typical[W/h]
108
Environmental Conditions
Operating Temperature
0?~40? ?
Operating Humidity
10 ~ 80%, non-condensing %
Features
Key
UHD Signage with Built-in MagicInfo S10, SSSP 10.0
H/W
Symmetric Design (same with QxR) Center IR Temperature Sensor Auto Level Wi-Fi(2.4/5.0GHz dual) & BT
S/W
Workspace (Microsoft365/VMWare/RDP) Custom Home Auto Source Switching & Recovery Dicom Simulation Mode Director Mode Upgradable Web-Engine Tizen Enterprise Platform Video Conference Solution [end of June~] Smart Calibration
Touchscreen
Yes
Touch
Touch Technology
Capative
Internal Player
Processor
Cortex A72 1.7GHz Quad-Core CPU
Storage
16 GB
Operating System
Tizen 6.5
Dimensions
Packaging (W x H x D)
1421 x 884 x 165
Set Dimension (WxHxD)
1253.8 x 734.6 x 56.7
Package Dimensions (W x H x D)
1421 x 884 x 165 mm
Weight
Package Weight
32.5
Set Weight
26.9
Accessories
Included in Box
Quick Setup Guide, Warranty Card, Power Cord RS232C(IN) Gender Remote Controller & Batteries
Stand
STN-L4355G
Mount
WMN4070SG (Land Only) WMN750ME
Specialty
CML400XR
Mechanical Specs
VESA Mount
200 X 200
Bezel Width (mm)
26.0/26.0/21.0/21.0 (U/D/L/R)
Operation Conditions
Temperature
0?~ 40?
Humidity
10~80%
Mechanical Specification
VESA Mount
200 x 200 mm
Frame Material
Non-Glossy
Optional Feature
Touch
Yes
Mount
WMN4070SG
Stand
STN-L4355G
SoC
OS Version
Tizen 6.5
Flash Memory Size
16GB
Certification and Compliance
EMC
Class B
Safety
60950-1 / 62368-1
Environment
ENERGY STAR 8.0, EPEAT
IP Rating
IP5x
Security
802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP
Display Panel
Class
55
Measured
54.6" / 138.7cm
Resolution
3840x2160(16:9)
Orientation
Landscape / Portrait
Haze
25% (without Glass)
Contrast Ratio (Typ)
4000:1
Type
VA
Active Display Area
1209.6(H) x 680.4(V)
Pixel Pitch (mm)
0.315 x 0.315
Brightness (Typ.)
500 nit (without Glass)
Color Gamut
92% (DCI-P3, CIE 1976)
Operation Hour
24/7
Connectivity / Sounds
Video
DP 1.2 (1), HDMI 2.0 (3)
HDCP
HDCP2.2
USB
USB 2.0 x 2
Audio
Stereo mini Jack
USB
Touch out 2 (PC/screen)
External Control
RS232C(in/out), RJ45
Speaker
10W 2ch
