Specification:
Power
Power Supply
AC 100 - 240 V, 50/60 Hz
Sleep Mode
less than 0.5W
Power Consumption (Max[W/h])
214.5
Power Consumption (Typical[W/h])
129
Features
Key
UHD Signage with Built-in MagicInfo S10, SSSP 10.0
Special H/W
2nd Gen. B2B Design
Center IR
Temperature Sensor
Ambient Sensor
Auto Level
Wi-Fi(2.4/5.0GHz dual) & BT
Special S/W
Signage New Home
Workspace (Microsoft365/VMWare/RDP)
Custom Home
Auto Source Switching & Recovery
Dicom Simulation Mode
Director Mode
Upgradable Web-Engine
Tizen Enterprise Platform
Video Conference Solution
Smart Calibration(Basic)
Internal Player
Processor
CA53 1.3GHz Quad-Core
Operating System
Tizen 7.0
Storage (FDM)
8 GB (3 GB available)
Accessories
Included in Box
Quick Setup Guide,
Warranty Card,
Power Cord
RS232C(IN) Gender
Remote Controller & Batteries
Optional Stand
STN-L6585C
Optional Mount
WMN-B50SC
Mechanical Specs
VESA Mount
400x400
VESA Mount Screw (Min~Max)
M8, 12~14mm
Bezel Width (mm)
13.4(Even)
Set Dimension (mm)
1682.3 x 960.4 x 28.5
Package Dimension (mm)
1839 x 1113 x 180
Set Dimension (Inches)
66.2 x 37.8 x 1.1
Package Dimension (Inches)
72.4 x 4.4 x 7.1
Set Weight (kg)
33.4
Package Weight (kg)
44.1
Set Weight (lbs)
73.6
Package Weight (lbs)
97.2
Certification
Safety
60950-1 / 62368-1
EMC
Class B
Environment
ENERGY STAR 8.0, EPEAT
IP Rating
IP5x
Security
802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP
Display Panel
Screen Size
75
Measured
74.5
Resolution
3840x2160(16:9)
Brightness(Typ.)
350 nit
Orientation
Landscape / Portrait
Haze
2%
Contrast Ratio (Typ.)
4000:1
Type
VA
Active Display Area
1650.24 (H) x 928.26 (V)
Pixel Pitch (mm)
0.429 x 0.429
Color Gamut
NTSC 72%
Operation Hour
16/7

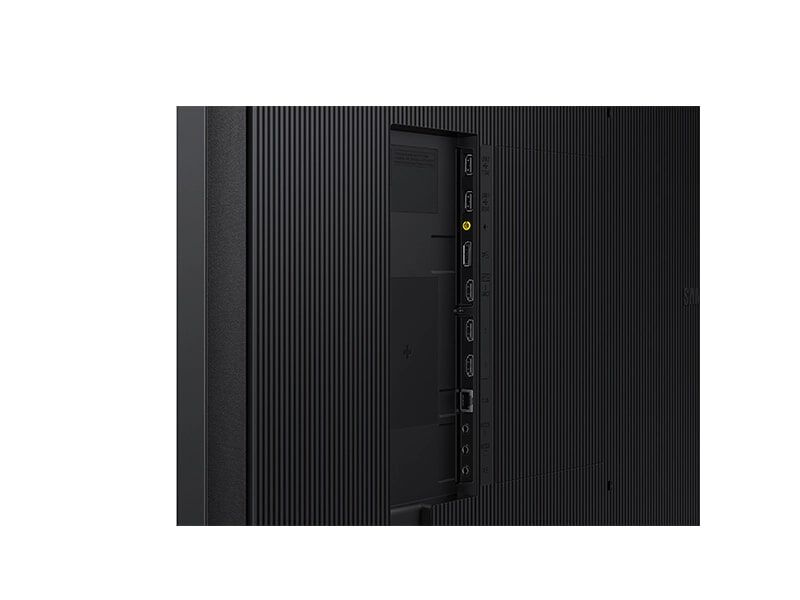

Connectivity/Sound
VIDEO Input
HDMI 2.0 (3)
HDCP Input
HDCP2.2
USB Input
USB 2.0 x 2
AUDIO Output
Stereo mini Jack
External Control
RS232C(in/out), RJ45
Speaker
10W 2ch
Operating Condition
Relative Humidity
10~80%
Temperature
0?~ 40?
