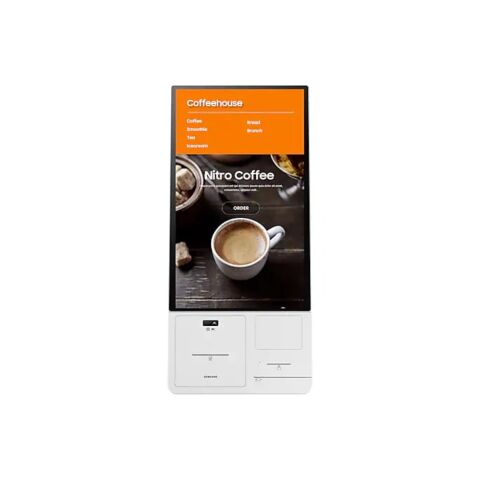

Samsung Smart Signage Kiosk Connection Box

Specifications:

Bi-Direction
One Connect Port (44pin)
Input & Output
USB
3ea
External Control
RS232C x 3, RJ45 x 1 (OUT, connected to EFT Terminal)
Receipt Printer
Type
Thermal

Printing Speed
250 mm/sec

Cutting
Automatic (Support Full cut, Partial cut)

Paper Support
Support 80mm paper roll, 20~83mm paper width, 0.05~0.12mm paper thickness
QR/Barcode Reader
Supported Dimension
1D, 2D

Readability
Mobile screen and printed barcodes

Supported Format
UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, GS1 DataBar, Codabar, QR
Card Reader
Type
N/A

Authorization
N/A

EFT Terminal Cradle
N/A
Dimension
Set Dimension (WxHxD, mm)
334.4(W) x 389.6(H) x 236.5(D)

Package Dimension (WxHxD, mm)
428(W) x 471(H) x 316(D)
Weight
Set Weight
7.4 kg

Package Weight
9.1 kg
Assembled Set
Power Supply
AC 100~240V 50/60Hz

Power Consumption (Off Mode, W)
N/A

Power Consumption (On Mode, W)
25W/h

Power Consumption (Sleep Mode, W)
0.5W/h

Set Dimension
334.4(W) x 733(H) x 236.5(D)

Set Weight
12.5 kg

Set Color
Gray White

Protection Glass
Yes

Media Player Option Type
N/A

Rotation
N/A

Power Cable Length (m)
2.4m

Operating Temperature
0?~ 40?

Operating Humidity
10~80%

Optional Stand
Floor Stand (Optional)

Optional Mount
VESA 200 x 200
