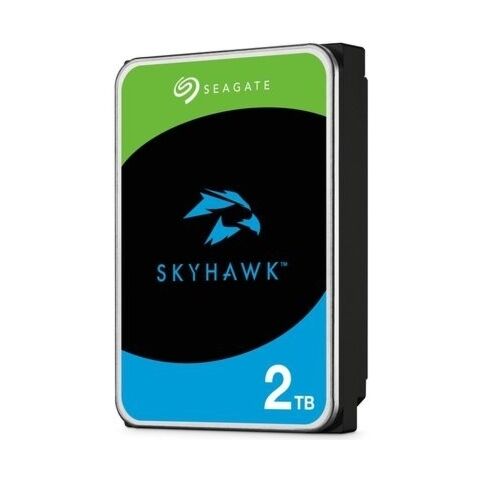

Seagate Skyhawk ST2000VX017 2TB 3.5" SATA 6Gb/s Surveillance Hard Disk Drive, CMR recording technology, 180MB/s Max sustained transfer rate OD, 256MB Cache, Up to 8 Drive bays supported, Up to 64 cameras supported
Specifications:
Standard Model Numbers ST2000VX017
SkyHawk Health Management Included Yes
Interface SATA 6 Gb/s
Recording Technology CMR
Drive Design Air
Features and Performance
Drive Bays Supported Up to 8
Cameras Supported Up to 64
RV Sensors -
Max Sustained Transfer Rate OD (MB/s) 180MB/s
Cache (MB) 256
Reliability/Data Integrity
Tarnish Resistant Yes
Load/Unload Cycles 600000
Non-recoverable Read Errors Rate, Max 1 per 10E14
Power-On Hours per year 8760
Workload Rate Limit (WRL) 180
Mean Time Between Failures (MTBF) (hours) 1,000,000 hr
Power Management
Startup Current, Typical (12V, A) 1.8
Average Operating Power (W) 3.7 W
Idling Average (W) 2.5 W
Standby Mode/Sleep Mode, Typical (W) 0.25/0.25
Voltage Tolerance (5 V) ±5%
Voltage Tolerance (12 V) ±10%
Environmental/Temperature
Operating (ambient, min °C) 0
Operating (drive reported, max °C) 65
Non-operating (ambient, min °C) -40
Physical
Height (mm/in, max) 20.2 mm/0.795 in
Width (mm/in, max) 101.6 mm/4 in
Depth (mm/in, max) 146.99 mm/5.787 in
Weight (g/lb, typical) 415 g/0.915 lb
Carton Unit Quantity 25
Cartons per Pallet / Cartons per Layer 40/8
