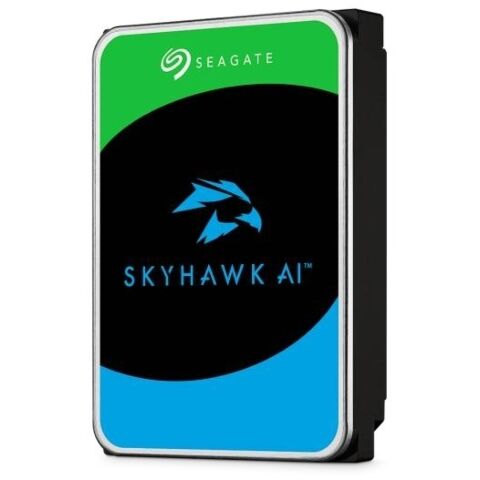

Seagate Skyhawk AI 10TB 3.5 inch SATA 256 MB Cache Surveillance Hard Disk Drive

Seagate Skyhawk AI 10TB 3.5" SATA 256 MB Cache Surveillance Hard Disk Drive, 245MB/s Maximum sustained transfer rate OD (MB/s), 256 MB Cache, CMR recording technology


Specifications:

Capacity 10 TB
Standard Model Numbers ST10000VE001
Interface SATA 6 Gb/s
Recording Technology CMR
Drive Design Air
Features and Performance
Drive Bays Supported 16+
AI Channels 32
AI Real Time Capture Events/Sec Up to 120
AI Real Time Compare Events/Sec Up to 96
HD Cameras Supported Up to 64
RV Sensors Yes
Max. Sustained Transfer Rate OD (MB/s) 245MB/s
Cache (MB) 256
Reliability/Data Integrity
Tarnish Resistant Yes
Load/Unload Cycles 600000
Non-recoverable Read Errors Rate, Max 1 per 10E15
Power-On Hours per year 8760
Workload Rate Limit (WRL) 550
Mean Time Between Failures (MTBF) (hours) 2,000,000 hr
Rescue Data Recovery Services (years) 3
Power Management
Startup Current, Typical (12V, A) 2
Average Operating Power (W) 10.1 W
Idling Average (W) 7.8 W
Standby Mode/Sleep Mode, Typical (W) 44197
Voltage Tolerance (5 V) ±5%
Voltage Tolerance (12 V) ±10%
Environmental/Temperature
Operating (Ambient, min °C) 0
Operating (drive reported, max °C) 65
Non-operating (ambient, min °C) -40
Physical
Height (mm/in, max) 26.11 mm/1.028 in
Width (mm/in, max) 101.85 mm/4.01 in
Depth (mm/in, max) 146.99 mm/5.787 in
Weight (g/lb, typical) 720 g/1.587 lb
Carton Unit Quantity 20
Cartons per Pallet / Cartons per Layer 40/8
