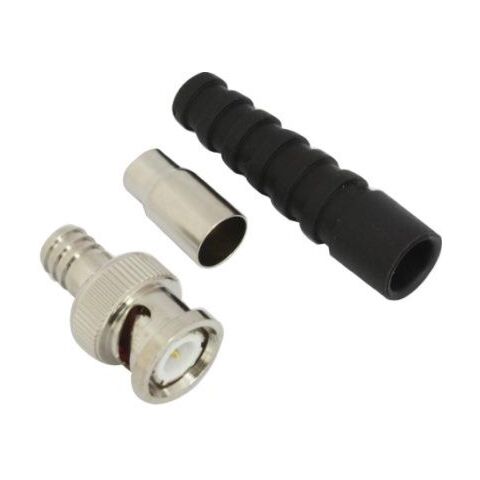

Securnix BNC male crimp on for RG59 cable

In stock
SKU
CT5015
Special Price R 191.00 Regular Price R 264.00
  • Brands - Cliqtosave Online: Securnix
Securnix BNC male crimp on for RG59 cable, with long boot 10 per Packet, , No Warranty
More Information
BrandSecurnix
Cable TypesCable Organizers

Details

Securnix BNC male crimp on for RG59 cable, with long boot 10 per Packet

Product Overview
The Securnix BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-sub miniature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).Please Note Items sold as 10 pieces per pack

Features
• Gender: male
• Application: RF
• Insulation Resistance: ≥5000MΩ
• Character Impedance:50Ω
• Frequency Range:0~3GHZ
• Contact Resistance: centre conductor≤1.5mΩ; outer conductor≤1mΩ
• Disengage Force:≥0.6N
• BNC Male Crimp On Connector with Long Boot for RG59 U Cable
• Captive centre-pin design
• Two-step ferrule with strain relief crimp

Material:
• Body—zinc alloy, nickel plated
• Ring—copper, nickel plated
• Centre pin—copper, gold plated
• Boot­—rubber
