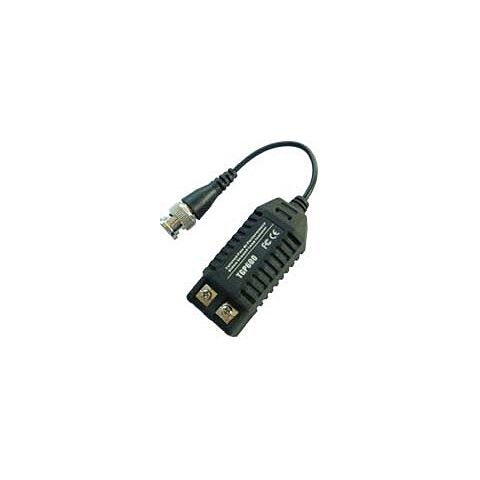

Twisted Pair Video Ground Loop Isolator GP100
Product Overview
The Securnix Twisted Pair Video Ground Loop Isolator GP100 are passive devices which reduce Ground Loop Interference with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials. Differences in ground potentials are typically caused by unbalanced power line loads.
Features:
• BNC male to terminal block with 15cm mini coax cable
• Passive type, no power need
• Hi Performance to eliminate ground loop problem
• Low video loss, Bandwidth: 20hz -11Mhz ,+0/-3Db
• Prevents video-signal distortion caused by video ground loops
• Eliminates picture tearing, cross talk and rolling
• Prevents power cables laid by others interfering with the CCTV system
• Insertion Loss:0.5dB
• Frequency Response:20HZ- 10Mhz,+0/-3dB
• Input Resistance:75 ohm
• Output Resistance:100 ohm
• Isolation Voltage:600VDC (Min)
• Insulation Resistance:100M Ohm
• Transient Voltage Suppressor:12 Vrms
• Material ABS Black
• Dimensions (mm)-72x28x22
• Weight: 156g/pair
