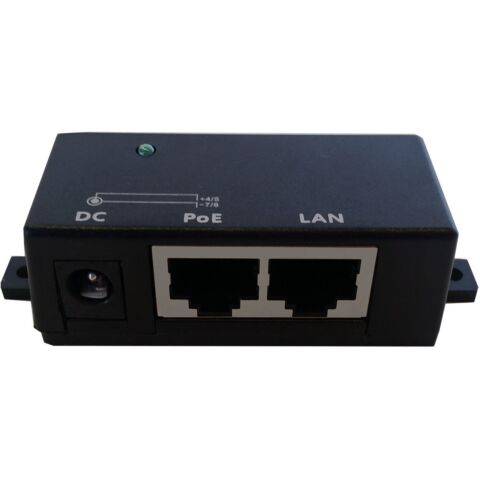

Single Port Fast Ethernet Passive PoE Injector

POE, Power over Ethernet (PoE) Passive Injector delivers both data and electrical power to passive PoE devices using a single Ethernet cable.

The POE supports Fast Ethernet Passive PoE-enabled devices, PIN 1/2/3/6 for Data and PIN 4/5/7/8 for Power. It can be wall-mounted.

PSU sold separately

Please note there is no power supply included with the Injector, we recommend powering with our range of Power supplies

Specifications

Ethernet Ports: 2x 10/100

Operating Temperature: 0°C to 40°C

PoE Mode: Mode B / Mid-span (4/5+, 7/8-)

PoE Output: PoE Pass-through (Power output determined by PSU)

Power Input: 9-48V Power Supply (Not Included)

Supported Voltage Range: 9-48V
