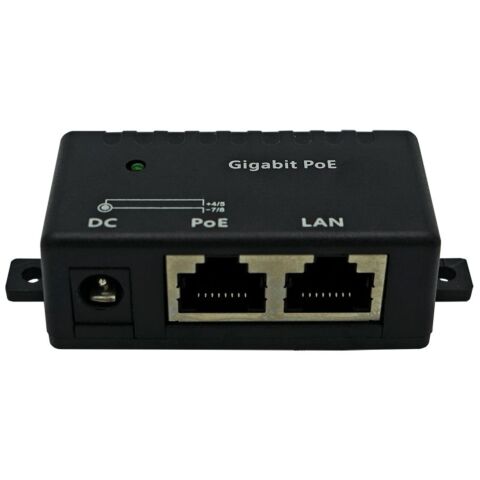

Single Port Gigabit Passive PoE Injector

POE-GIG Gigabit PoE Injector offers passive gigabit PoE to compliant devices. Simply connect your power source and then use an Ethernet cable to connect the injector to the device via the PoE port. The unit uses Mode B PoE and supplies power over pins 4,5 7,8.

Specifications

Ethernet Ports: 2x 10/100/1000

Operating Temperature: 0°C to 65°C

PoE Mode: Mode B / Mid-span (4/5+, 7/8-)

PoE Output: PoE Pass-through (Power output determined by PSU)

Power Input: 9-48V Power Supply (Not Included)

Supported Voltage Range: 9-48V
