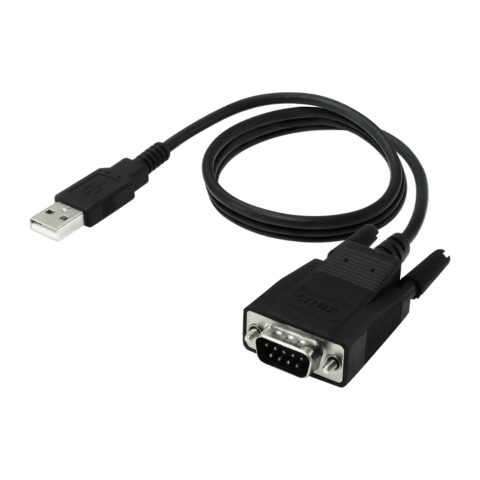

Sunix 1 port USB to RS-232 Serial Adapter

In stock
SKU
AC-SIUTS1009
Special Price R 212.00 Regular Price R 329.00
  • Brands - Cliqtosave Online: SUNIX
  • Expands one independent RS-232 serial ports through USB interface.
  • Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
  • No IRQ, DMA, I/O address resource required.
  • Supports USB 1.1 full speed 12Mbps and USB 2.0/3.0/3.1 compatible.
  • Each serial port provides transmission rate up to 115.2Kbps.
  • Built-in ± 8KV ESD protection for all serial signals.
  • Compact Size and low power consumption.
  • Supports both USB bus power mode without additional external power.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Mac and Linux.
More Information
BrandSUNIX
Tools & Accessories TypeAdapters

Details

  • Expands one independent RS-232 serial ports through USB interface.
  • Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
  • No IRQ, DMA, I/O address resource required.
  • Supports USB 1.1 full speed 12Mbps and USB 2.0/3.0/3.1 compatible.
  • Each serial port provides transmission rate up to 115.2Kbps.
  • Built-in ± 8KV ESD protection for all serial signals.
  • Compact Size and low power consumption.
  • Supports both USB bus power mode without additional external power.
  • Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Mac and Linux.

SUNIX ComHub UTS series transform your Universal Serial Bus (USB) port into asynchronous RS-232 serial ports for communication with serial devices. The UTS1009D adapter is compatible with both USB 3.0, 2.0 and 1.1 specifications with serial ports communication speed up to 120Kbps. SUNIX ComHub provides a quick, simple and cost-effective solution to bring the advantages of serial communicating for kinds of commercial and industrial automation applications.

Serial Communication

Interface RS-232
Controller Prolific PL2303GC
BUS Universal Serial Bus (USB)
No. of Port 1-port
IRQ & IO Assigned by System
FIFO Receive 768 byte Buffer Hardware
Transmit 256 byte Buffer Hardware
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Baud rate 50~115.2Kbps
Data bit 5, 6, 7, 8
Stop bit 1, 1.5, 2
Parity even, odd, none, mark, space
Protection ±8KV ESD Contact Discharge
PCB Connector DB9 Male with Screw bolt

Power

Power Source USB Bus Power +5VDC (±5%)
Standby Power Consumption <100mA / 5VDC
Working Power Consumption <150mA / 5VDC

Driver Support

Windows Client 7 / 8.x / 10 (X86/X64) / 11
Windows Server 2008R2 / 2012R2 / 2016 / 2019 (X64)
Linux Linux 2.6.x or later

Standards and Certifications

EMC CE, FCC, VCCI, BSMI
Green RoHS, WEEE,REACH

Environment

Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 15 x 45 x 33 mm
Cable Length 1200 mm (3.9ft)
