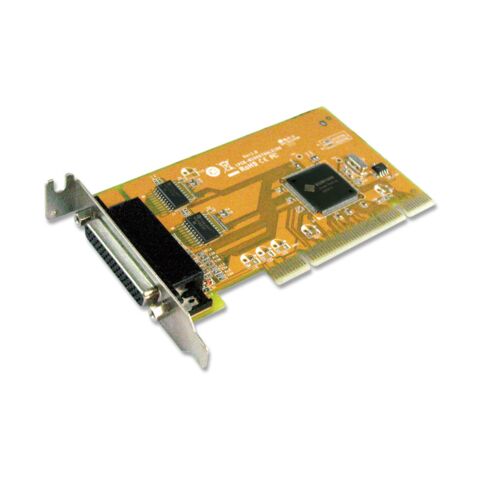

Sunix 2-port RS-232 & 1-port Parallel Universal PCI Low Profile Multi-I/O Board

Features:
Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system.
Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
High reliability SUNIX SUN1989 16C950 compatible Multi-IO controller on-board.
Expands two RS-232 serial port with communication speed up to 115.2Kbps.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ±2KV ESD protection for all serial signals.
Support IEEE 1284-1994 parallel port standard
* ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
* SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
Plug-n-Play, I/O address and IRQ assigned by system.
Low profile bracket design idea for slim or portable PC.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS.
