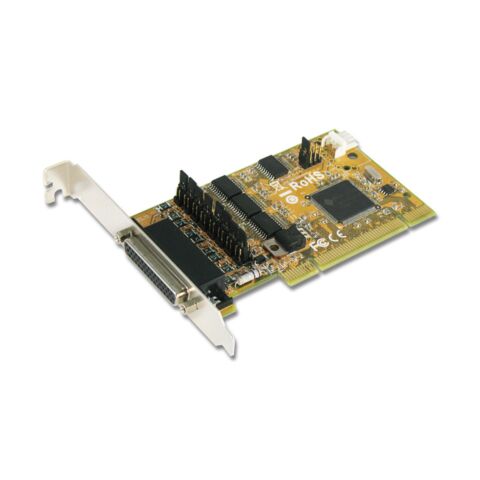

Sunix 4-port RS-232 with Power Output & Cash Drawer interface & DC Jack Universal PCI Serial Board

Special Price R 865.00 Regular Price R 1,170.00
In stock
SKU
AC-SICDK1056P+L
  • Brands - Cliqtosave Online: SUNIX
Sunix CDK1056P - Standard + Low-profile DUAL bracket - with Power select - 4 port serial ( 16c950 ) RS232 with + 6pin RJ11/12 Cash Drawer interface , with 1x 12VDC Power Jack expansion for POS peripheral , 5V/12V/Ri (no power) selectable for each serial port ( enable serial devices to function without ac-adapter ) , 32/64bit 3.5/5V pci card , 128byte hardware + 128k software FiFo, SUN1999 chipset , 115.2Kbps , 2KV ESD protection
More Information
BrandSUNIX
Tools & Accessories TypeAdd-On Cards

Details

Features:
Expands four independent RS-232 serial ports with communication speeds up to 115.2Kbps.
Expands single 6-pin RJ11/12 Type Cash Drawer interface to drive +12 / 24 VDC Cash Drawer.
Expands single +12VDC Power Jack to connect POS peripheral, such as touch display.
High speed SUN1999 16C950 compatible UART controller on-board.
Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
Provides RS-232 serial ports with +5 or +12 VDC power output via COM 1st or 9th pin.
On-chip hardware auto flow control to guarantee no data loss.
Built-in ± 2KV ESD protection for all serial signals.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
SUNIX Windows based APIs for user easily implement Cash Drawer operation.
Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
Support Microsoft Windows, Linux, and DOS.
