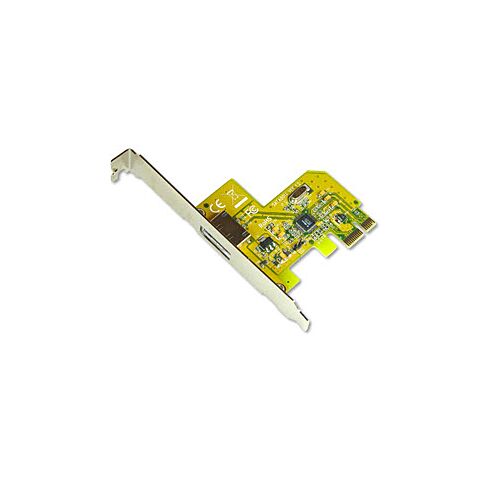

Sunix sata0014 - 1 port external e-SATA PCI-Express Card

Specifications



SATA0014 is a single-chip, one-lane PCI Express to one external port Serial-ATA (SATA) II host controller that brings server-class features to the desktop. SATA1400 equips high-performance chipset which supports all Serial ATA II features, including 3.0 Gbps SATA II transfer speeds and Native Command Queuing (NCQ). It is fully compliant Serial ATA ports on the device side to access Serial ATA storage media such as SATA Disk Array Box, SATA RAID Enclosure, or external storage and ATAPI peripheral.

Features:

Fully compliant with one-lane 2.5Gb/s PCI Express specification.
Serial ATA Generation 2 transfer rate of 3.0 Gb/s.
Compliant with Serial ATA 1.0a and Serial ATA II extensions to ATA 1.0a specification.
Provides one external channel for SATA II harddisk drive and enclosure connection.
Supports SATA II NCQ (Native Command Queuing) to maximize system performance.
Hot-swapping feature allows you to attach/detach SATA device without first powering your computer off.
Works with various brands of large capacity SATA/SATA II hard disk drives.
Low-profile design fitting for kinds of computer chassis (Optional).
