Specifications

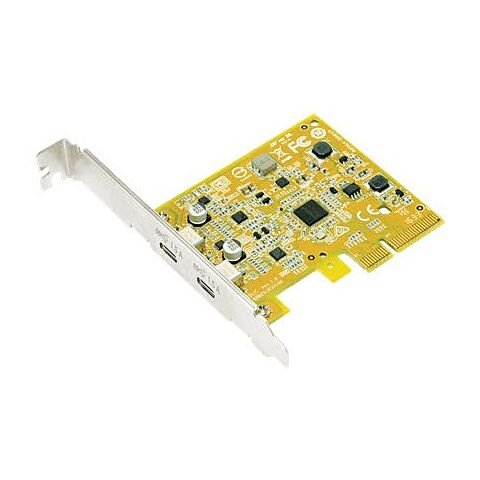

Sunix USB2312C - standard + low-profile DUAL bracket, pci-Express (2x) - 2x external USB3 type-C (Gen2/10Gbps) with type-C to type-A adapter, USB 3.0/2.0 backward compatiable, Asmedia ASM1142 - supports power management and remote wake up from USB device
Overview:
SUNIX USB2312C is a 2 port SuperSpeed+ USB 3.1 PCI Express card, and it’s compliant with the PCI Express Revision 2.0 & 3.0 for host PC system. Based on USB Type-C pure DFP (Downstream Facing Port) mode, it works up to 10 Gbps for data transfer when connecting to USB 3.1 compliant peripherals, while maintaining compatibility with existing USB peripheral devices. USB 3.1 performance is 2 times faster than USB 3.0 and 20 times faster than USB 2.0 connectivity.
With USB Type-C Receptacle, SUNIX USB2312C sports reversible plug orientation and cable direction, which means that users will no longer need to be concerned with plug orientation/cable direction, making it easier to plug in. The new connector is smaller and thinner design, but drive higher power output capacity to USB device. SUNIX USB2312C supports 5VDC@1500mA power output to USB device with over current protection on each USB port. This card is an ideal choice for external storage devices, digital cameras, webcam, video devices, and all other USB electronic devices.
Features:
PCI Express Base Specification Revision 2.0 & 3.0 Dual-lane ( x2) .
Compliant with Universal Serial Bus 3.1 specification Gen2.
Compliant with xHCI (eXtensible Host Controller Interface) Ver.1.1.
Supports simultaneous operation of multiple USB 3.1, 3.0, 2.0 and 1.1 devices.
Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps.
Expands dual external USB 3.1 Type-C port (DFP) on the system.
USB port supplies maximum +5VDC / 1500mA power output to USB device.
Built-in over current protection on each USB port.
Hot-swapping feature allows connect/disconnect device without powering down the system.
Driver supports for Microsoft Windows 7, 8.x and 10 operation systems.
Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
Green Product meets RoHS standard and Low Power consumption.
