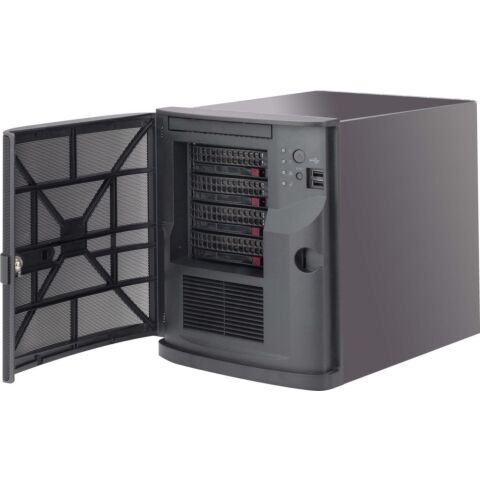

SuperMicro 721TQ-250B Mini-ITX pedestal chassis

SuperMicro 721TQ-250B Mini-ITX pedestal chassis, 4x 3.5" Hot-Swap Hard Disk Drive, 250W PSU

Overview:

Compact Mini-Tower: D 11" x W 8.27" x H 9.45"
Support wide range of Mini-ITX Motherboard, from ATOM to Core i7
4 x 3.5" Hot-Swap SATA HDD and 2x internal 2.5" SATA HDD
One low profile expansion slot

Specifications:

Product Code SM-CSE-721TQ-250B
CSE-721TQ-250B SuperChassis 721TQ-250B
Form Factor Compact Mini-Tower Chassis for motherboard support size: (6.75" x 6.75")
Processor Support Single Intel and AMD processors
Dimensions
Height 9.45" (240.03 mm)
Width 8.27" (210.06 mm)
Depth 11" (279.4 mm)
Net Weight 13.5 lbs (6.12 kg)
Gross Weight 15 lbs (6.8 kg)
Packaging (W x H x L) 12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm)
Available Color Black
Expansion Slots Up to
1 low-profile expansion slot(s)
Drive Bays 4 x 3.5" hot-swap SAS/SATA
2 x 2.5" fixed drive bay
SAS or enterprise SATA HDD only recommended
Backplane 4x3.5" SAS2/SATA3 backplane w/SES-II
Peripheral Drives 1 x slim DVD-ROM drive bay
Front Panel
Buttons Power On/Off button
System Reset Button
LEDs 1 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Systems Cooling
Fans 1 x 12cm rear exhaust fan(s)
Operating Environment (System)
Operating Temperature Range 0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range -20°C - 60°C (-4°F ? 140°F)
Operating Relative Humidity Range 10% - 85% (non-condensing)
Non-Operating Relative Humidity Range 10% - 95% (non-condensing)
Power Supply 1U 250W Flex ATX Multi-output Bronze Power Supply, FSP FSP250-50LC
Power Efficiency 85%
Total Output Power and Input 250W with Input 100 - 240Vac
AC Input Frequency 50-60Hz
Dimensions (L x W x H) 150 x 81.5 x 40.5 mm
Output Type 24pin ATX
-12V Max: .3A / Min: 0A
+12V Max: 18A / Min: 1A (100Vac - 240Vac)
+5V Max: 14A / Min: .5A
+3.3V Max: 12A / Min: .3A
+5Vsb Max: 2.5A / Min: 0A
Certification Bronze Certified
