TBYTE All in One Network Toolkit

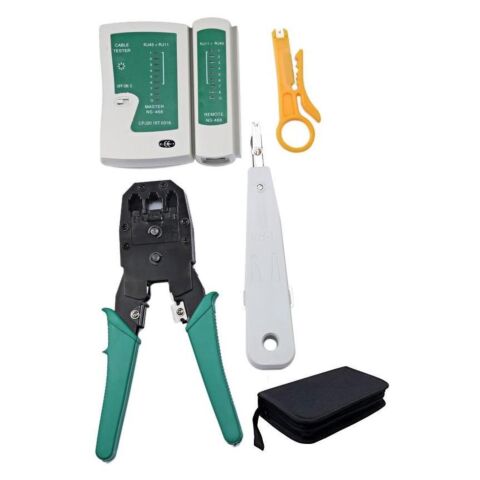

TBYTE 5-IN�1 NETWORK - TOOL5

Crimping Tool: 1pcs

Mini Yellow Knife: 1pcs

Network Cable Tester :1pcs

KD-1Punch Down Tool : 1pcs

Network Tool Bag : 1pcs

Crimping Tool with Mini Yellow Knife

Network Multi-Function Deutsch RJ45 Pex Crimp Stainless Steel Pipe Crimper 315 Type For RJ45 RJ11 RJ12 Cable Pex Crimping Tool

Features :

Won't damage the shelled-wire and works with high efficiency

The mouth of the press-pliers is made of magnanic steel ,which is hard and durable
Portable style with perfect shape
While using press-pliers,just insert the cystal top into its position and press it.
For 4,6,8poles mudular connection

Product Description: 3-in-1 crimp tool used to cut, strip and crimp modular plugs on either round or flat cables Parallel action
design maintain accurate alignment of die with plug for precision crimp every time Suitable for RJ45 and RJ11 modular plugs
terminated Non-slip with ribbed edge handle Easy to hold.
Application: Used for network communication in telecommunication field-cabling systems, Gigabit Ethernet, together with Patch
Panel, Face Plate, Patch Cord, Cable Management, Cat5e/Cat6 Cables, etc.

Cat5e standard, suitable for RJ45 connector. With stripping function, meet domestic installation requirements, quality assurance
This tool integrates all the functions of wire clamp, and can easily cut, press and strip the wire.
Standard connection of twisted pair:

Twisted pairs are generally used for star network wiring

Each twisted pair connects various network devices through RJ-45 connectors (commonly known as crystal heads) installed at both ends

The standard connection method of twisted pair cable is not arbitrarily stipulated

The purpose is to ensure the symmetry of cable joint layout, so that the interference between the cables in the joint can be offset each other

Cat5e line is a common network line in network routing, which can be divided into shielding and non-shielding

If it is used outdoors, shielded wires are better. Generally, it is enough to use non-shielded five types of wires indoors

Because there is no shielding layer, the cable will be relatively soft, but the connection method is the same

Generally, there are four pairs of twisted thin lines in the super-five lines, and they are marked with different colors.

There are two types of twisted pair connection: EIA/TIA 568B standard and EIA/TIA 568A standard.

The tail of the RJ45 connector is downward (i.e. the flat side is upward) from left to right, which is set at 1 23 4 5 6 7 8, respectively. The following is the distribution of each orifice.

T568A line order
Green, white, green, orange, white, blue, white, orange, brown and white brown

T568B line order
Orange, white, orange, green, blue, white, green, brown and white brown

Network Cable Tester

RJ45 RJ11 RJ12 Cat5 Cat6 UTP Network Cable Tester for LAN Phone Wire Test Tool

Introduction:

This LAN Network Cable Tester is required for network installation of RJ-11, RJ-12,RJ-45, CAT5, CAT6, 10/100BaseT, TIA-568A/568B, AT&T 258-A.

RJ45 Network Cable Tester tests double-twisted cables 1, 2, 3, 4,5, 6, 7, 8 and Ground, 9 LED lights to indicate wiring connection on both remote and master unit. With this Network Cable Tester, you can judge wrong connection, short circuit and open circuit

Compact and light weight Network Cable Tester, useful for home and outside use

Features:

Quickly and easily check RJ45 network cables and RJ11 cables

Check open and short terminals, straight through or crossover wiring type

Ideal for I.T enthusiast who wish to make their own network cables

Operates from a single 9V PP3 battery (not supplied)

LED for UTP Cable

Automatic scan for the wrong wiring or disorder cable

Test length depended on the battery condition

KD-1 Punch Down Tool

Professional PP Plastic Network Tools 110 IDC Cable Punch Down Tool For Network

Product Name Network: Punch Down Tool

Material Handle:PP Tong

Head: Steel application For 110 IDC

Color White

Network Tool Bag
