TP-Link 5 Port 10/100 Mbps Desktop Switch with 4 Port PoE

TP-Link SF1006P 5 Port 10/100 Mbps Desktop Switch with 4 Port PoE, 6x 10/100 Mbps RJ45 ports (Ports 1-4 support 802.3af/at PoE+), Fanless, 67 W PoE Power Supply

Overview:

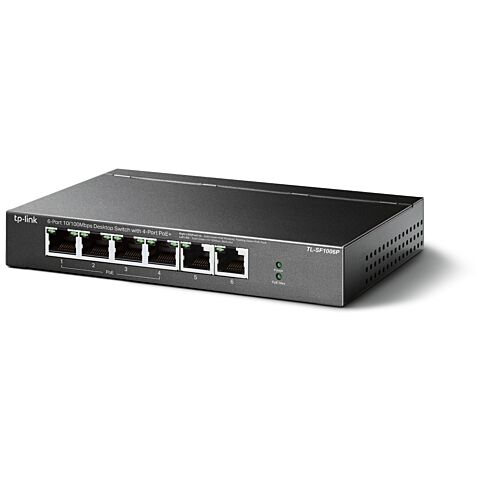

TL-SF1006P - 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+

6x 10/100 Mbps RJ45 ports
4x PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Up to 250m data and power transmitting range under Extend Mode
Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 67 W for all PoE ports
Plug and play with no configuration required
Features:

Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

67 W PoE Budget
Plug and Play
Transmission Distance up to 250 m
One-Click Priority Mode
Intelligent Power Management
Durable Metal Casing
Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications -
Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Plug and Play, No Configuration Required

1Plug In
2Connect DevicesIP phoneIP CameraAccess PointsNetwork Video RecorderInternetTL-SF1006PRouter
3Enjoy
Priority Video - Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority ports power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing -
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.

Specifications:

HARDWARE FEATURES
Interface 6x 10/100 Mbps RJ45 Ports (ports 1-4 support 802.3af/at PoE+)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate 0.8928 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1-4
Power Supply: 67 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.2 Gbps
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption 1.9 W (220 V / 50 Hz, no PD connected)
74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation 6.48 BTU/h(no PD connected)
252.34 BTU/h(with 67 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1-4)
Priority Mode Button (Ports 1-2)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1006P
Power Adapter
Installation Guide
Environment Operating Temperature: 0-40 °C (32-104 °F)
Storage Temperature: -40-70 °C (-40-158 °F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
