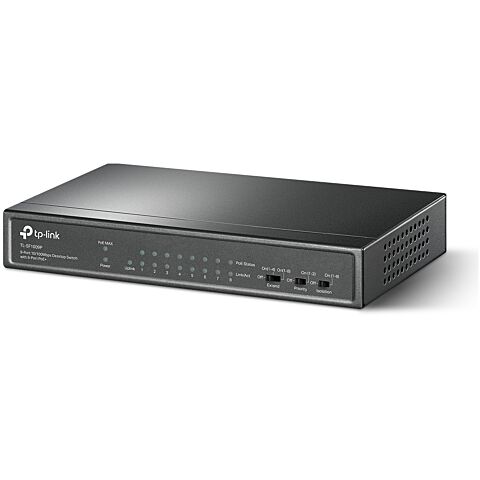

TP-Link SF1009P 9-port 10/100 Mbps Desktop Switch with 8 Port PoE+, 9x 10/100 Mbps RJ45 Ports with 8x 10/100 Mbps 802.3af/at PoE+ Ports, Fanless, 65 W Power Supply
Overview:
TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
9x 10/100 Mbps RJ45 ports
8x PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports
Up to 250 m data and power transmitting range under Extend Mode
Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
Features:
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 8x PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Mode and Isolation Mode make surveillance smoother and safer.
Priority Mode Button Priority Video Quality Guaranteed Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.
Isolation Mode Button One-Click Traffic Separation for Ports 1-8 With one click, Isolation Mode easily divides traffic for ports 1-8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority ports power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
Specifications:
HARDWARE FEATURES
Interface 9x 10/100 Mbps RJ45 Ports (8x 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate 1.3392 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8
Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.8 Gbps
Dimensions ( W x D x H ) 6.7 x 3.9 x 1.1 in (171 x 98 x 27 mm)
Max Power Consumption 3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation 12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 1-2)
Isolation Mode Button (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SF1009P
Power Adapter
Installation Guide
Environment Operating Temperature: 0-40 °C (32-104 °F)
Storage Temperature: -40-70 °C (-40-158 °F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
