Durable, weatherproof enclosure for outdoor Wi-Fi applications
Up to 1200Mbps with 2×2 MIMO technology
High transmission power and high gain antennas provide a long-range coverage area
Free Omada Controller software enables administrators easily manage hundreds of EAPs
Captive portal provides a convenient method for guest authentication
Facebook Wi-Fi and SMS anthentication help to boost your business
802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
HARDWARE FEATURES
Interface Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)
Button Reset
Power Supply 802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 10.5W
Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)
Antenna 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi
Weatherproof Enclosure IP65
Mounting Pole/Wall Mounting (Kits included)
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Client Capacity 220+**
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs?Up to 16 SSIDs, 8 for each band?
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control ?Adjust Transmit Power on dBm?
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
Omada App Yes
Omada Cloud Controller Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE?FCC?RoHS

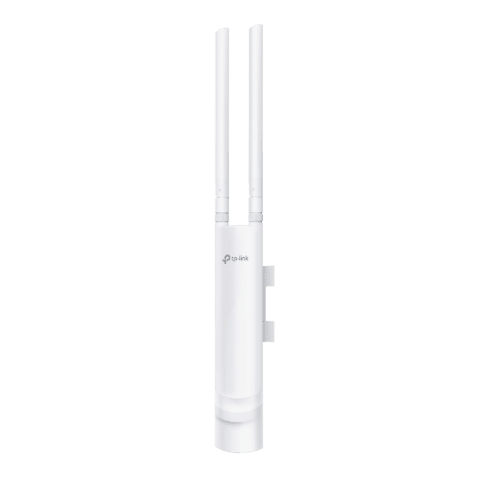

Package Contents AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment Operating Temperature: -30?~70? (-22?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
