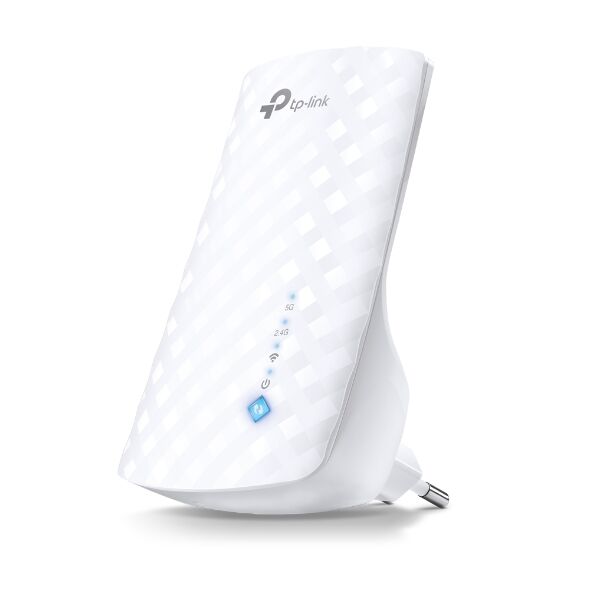

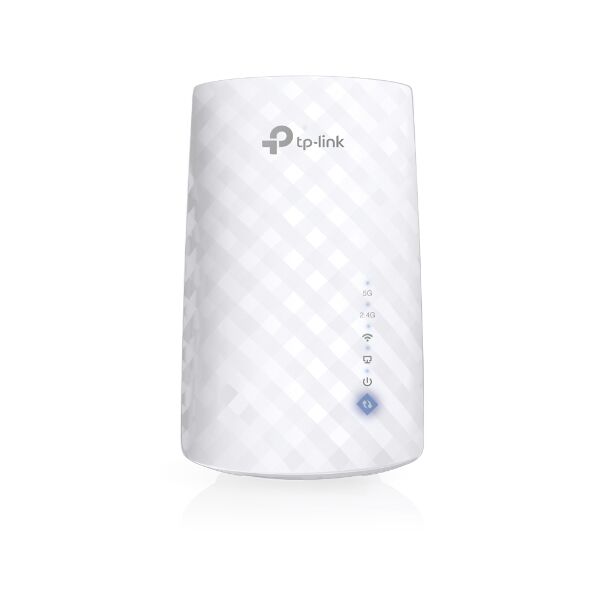

TP-Link RE190 AC750 Wi-Fi Range Extender

Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
Dual band speeds up to 750Mbps
Miniature size and wall-mounted design make it easy to deploy and move flexibly

HARDWARE FEATURES
Button WPS Button, RESET Button
Input Power 100-240V~50/60Hz
Power Consumption 7.0W
Dimensions 4.3×2.59×1.53 in. (110.0×65.8×38.8mm)
Antenna 3 Omni-directional Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE
802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 300Mbps at 2.4GHz, 433Mbps at 5GHz
Reception Sensitivity 5GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -78dBm
11ac HT20 MCS0: -94dBm, MCS8: -73dBm
11ac HT40 MCS0: -91dBm, MCS9: -65dBm
11ac HT80 MCS0: -88dBm, MCS9: -62dBm
2.4GHz:
11g 54Mbps: -78dBm, 11n HT20: -75dBm
11n HT40: -73dBm
Transmit Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz);
<30dBm(5.47GHz~5.725GHz)
Wireless Functions WMM, Short GI, High Speed, WPS
Wireless Security WEP, WPA/WPA2-PSK encryptions
Transmission Power CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz);
<30dBm(5.47GHz~5.725GHz)
OTHERS
Certification CE, RoHS

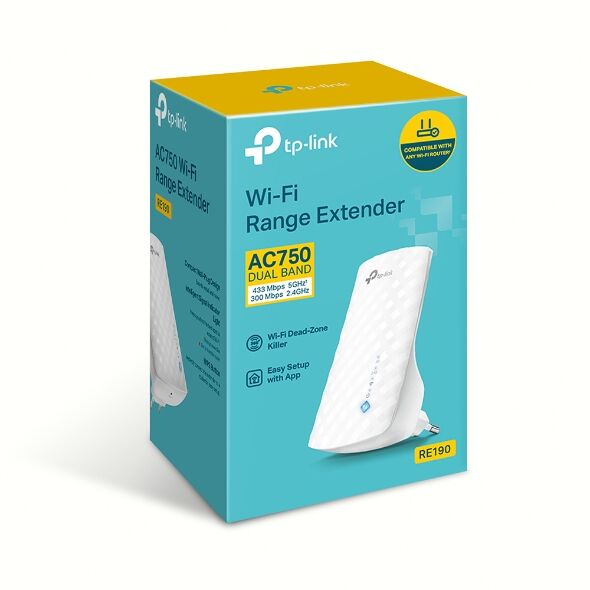

Package Contents Range Extender RE190
Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or
Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari
4.0, or other Java-enabled browser
Environment Operating Temperature: 0°C ~ +40°C
Storage Temperature: -40°C ~ +70°C
Operating Humidity: 10% ~ 90%RH
Storage Humidity: 5% ~ 90%RH
