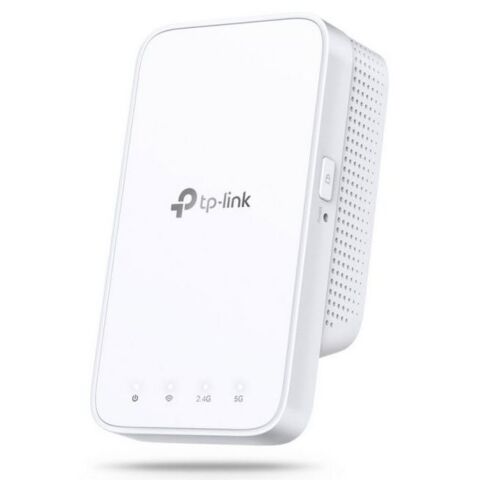

TP-Link RE300 AC1200 Mesh Wi-Fi Range Extender

TP-Link RE300 AC1200 Mesh Wi-Fi Range Extender, Wall Plugged, 2 internal antennas, 867Mbps at 5GHz + 300Mbps at 2.4GHz, Range Extender mode, WPS, Intelligent Signal Light, Access Control, Power Schedule, LED Control, OneMesh, Tether App

Features:

Extends dual-band WiFi across your home to eliminate WiFi dead zones*
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.***
Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps)* for more stable wireless experience.
Smart signal indicator helps to fi­nd the best location for optimal WiFi coverage by showing signal strength.
Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI.
Works with any WiFi router or wireless access point.
Keep the Whole Home Connected
RE300 wirelessly connects to your WiFi router, strengthening and expanding its signal into areas it can’t reach on its own. With speeds of up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz*, put strong, fast WiFi in every room and say goodbye to dead zones.

TP-Link OneMesh™
OneMesh™ is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.

Smart Roaming
Uninterrupted streaming when moving around your home***

One WiFi Network Name
No more switching WiFi network names

Easy Creation
OneMesh™ Router + OneMesh™ Range Extender

Unified Management
Manage the whole unified network all in one Tether app

Enjoy a Mesh Network with Your Existing Router
Want a Mesh network? Deciding whether to replace your existing router and buy a Mesh set? TP-Link OneMesh™ resolves your dilemma.

Faster AC1200 Dual Band WiFi
The RE300 lets you keep more devices connected simultaneously with its 2.4 GHz 300 Mbps and 5 GHz 867 Mbps dual bands*

Keeps Itself Fast
Adaptive Path Selection keeps your network running at top speed by automatically choosing the fastest connection path to the router.

High Speed Mode
Use both WiFi bands to establish one super high speed connection, ideal for HD streaming & gaming.

Secure One-Touch Connection for Easy Setup

Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE300 to connect to the network.
Step 2: Once connected, place the RE300 in a suitable location.
Find the Best Location with the Smart Signal Indicator
The smart signal indicator lets you see signal strength from your existing router at a glance. Easily to find the best place to position your range extender to extend your WiFi.

Feature-Rich App for Control in Your Hands
Set up and manage your WiFi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Specifications:

HARDWARE FEATURES
Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Button WPS Button, Reset Button
Power Consumption 7.3W(max power consumption)
Dimensions ( W x D x H ) 4.9 x 2.7 x 2.0 in (124 x 69 x 52 mm)
WIRELESS FEATURES
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5 GHz:Up to 867 Mbps
2.4 GHz:Up to 300 Mpbs
Reception Sensitivity 5GHz
11a 6Mbps:-91dBm@10% PER
11a 54Mbps: -74dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -63dBm@10% PER
11ac HT80 mcs9: -59dBm@10% PER
2.4GHz
11g 54M: -79dBm@10% PER
11n HT20 mcs7: -77dBm@10% PER
11n HT40 mcs7: -74dBm@10% PER
Wireless Modes
Wireless Functions Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power <17dBm(2.4GHz)
<17dBm(5GHz)
OTHERS
Certification FCC, RoHS
Package Contents AC1200 OneMesh Wi-Fi Range Extender RE300
Quick Installation Guide
Box Dimensions (W X D X H) 6.2 x 4.0 x 3.5 in. (156.5 x 101.5 x 89 mm)
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
