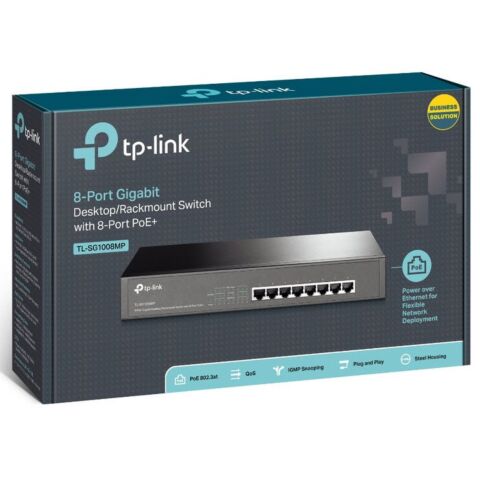

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

Overview:

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Features:

8 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
Innovative energy-efficient technology reduces power consumption
Rack mountable with included rack mount bracket
Total PoE power budget up to 126W
Plug and play design, no configuration required
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

Specifications:

HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1
Power Supply 100-240VAC, 50/60Hz
PoE+ Ports(RJ45) Standard: 802.3at/af (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 126W
Backbound Bandwidth 16Gbps
Mac Address Table 4K
Buffer Size 1.5Mbits
Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in.
(294 x 180 x 44 mm)
Mounting 13" and 19" 1U rack mountable
Max Power Consumption 9.9W(no PD load)
144.4W(with 124W PD load)
Max Heat Dissipation 33.7BTU/h(no PD load)
492.6BTU/h(with 124W PD load)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transfer Method Store-And-Forward
OTHERS
Certification FCC, RoHS
Package Contents TL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
