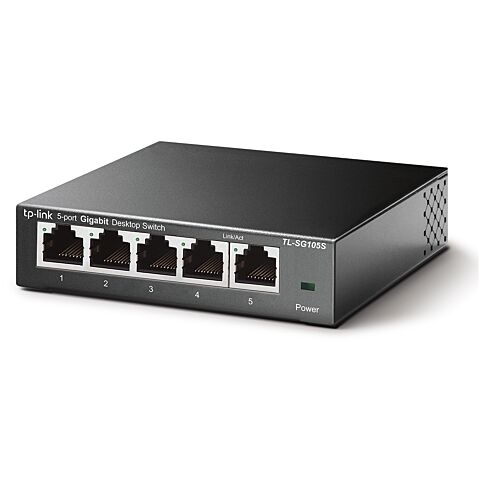

TP-Link TL-SG105S 5-port Gigabit Desktop Switch

TP-Link TL-SG105S 5-port Gigabit Desktop Switch, Fanless

Overview:

TL-SG105S - 5-Port 10/100/1000Mbps Desktop Switch

5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, no configuration needed
Features:

What This Product Does
The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

Specifications:

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
Power Consumption Maximum: 2.3W (220V/50Hz)
External Power Supply External Power Adapter (Output: 5VDC / 0.6A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm)
Max Heat Dissipation 7.83 BTU/h
PERFORMANCE
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1Mb
Jumbo Frame 16KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
