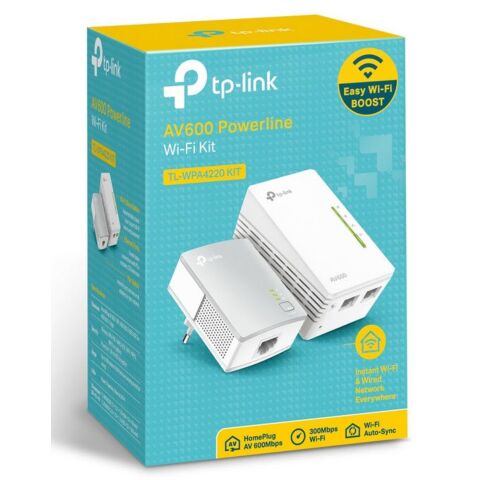

TP-Link TL-WPA4220 KIT AV600 Powerline Wi-Fi Kit

TP-Link TL-WPA4220 AV600 Powerline Wi-Fi Kit

Features:

One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
HomePlug AV standard providing up to 600Mbps high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
Extend Wired and Wireless Network to Any Room Using Existing Powerline
Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. With advanced HomePlug AV600, the TL-WPA4220 KIT transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired and wireless network to anywhere there is a power outlet.

AV600 Speeds and 300 Meters Range
Using advanced HomePlug AV technology, TL-WPA4220 KIT provides stable and high-speed data transmissions of up to 600 Mbps* for ranges up to 300 meters where there is a power outlet. No interference on electrical or electronic equipment. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

Plug and Play with No Configuration Required
Ditch the complicated setup process for good. Get started with powerline in just two steps:

Step1: connect TL-PA4010 to your router.
Step2: plug in TL-WPA4220 wherever you need wired and wireless internet service.
Wi-Fi Auto-Sync for Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

Two Ethernet Ports for Wired Connections
With two Ethernet ports, the TL-WPA4220 Kit can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. Two Ethernet cables are included in the box.

Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices.

Specifications:

HARDWARE FEATURES
Plug Type EU
Standards and Protocols HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface 2*10/100Mbps Ethernet Port
Button Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption Maximum: 7.608W (220V/50Hz)
Typical: 7.216W (220V/50Hz)
Standby: 4.610W (220V/50Hz)
LED Indicator PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H ) TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 x 40 x 94 mm)
TL-PA4010: 2.0 x 1.1 x 2.6 in. (52 x 28.5 x 65 mm)
Range 300 Meters over electrical circuit
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security 64/128-bit WEP / WPA / WPA2, WPA-PSK / WPA2-PSK
Advanced Functions Enable/DisableWireless Radio, WMM, Wireless Statistics
Transmission Power CE:<20dBm(2.4GHz)
FCC:<30dBm
SOFTWARE FEATURES
Modulation Technology OFDM (PLC)
Encryption Powerline Security:
128-bit AES
Wireless Security:
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption
OTHERS
Certification CE, RoHS
Package Contents - AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA4010
- Ethernet Cable x 2
- Quick Installation Guide
System Requirements Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
