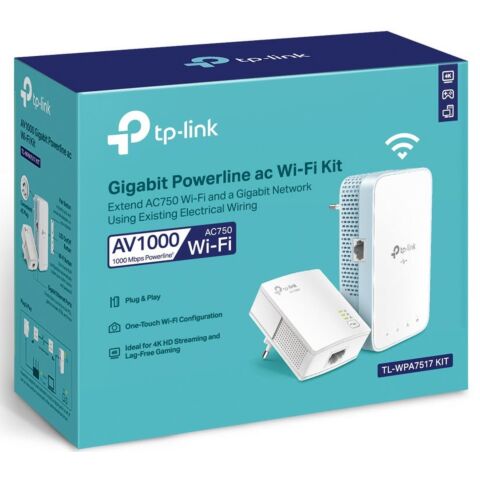

TP-Link TL-WPA7517 KIT AV1000 Powerline Wi-Fi Kit

TP-Link TL-WPA7517 AV1000 Powerline Wi-Fi Kit, KIT: 1� TL-WPA7517 + 1� TL-PA7017, TL-WPA7517: SPEED: 300 Mbps at 2.4 GHz + 433 Mbps at 5 GHz, 1000 Mbps Powerline, SPEC: Broadcom CPU, 1� Gigabit Port, Wall Plugged, HomePlug AV2, FEATURE: Plug and Play, tpPL

Features:

Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters
Dual band 802.11ac Wi-Fi - AC750 dual band Wi-Fi (433Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home
Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move
Gigabit Ethernet Port - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
Plug, Pair and Play - Quickly set up a secured Powerline network
Extend Wired and Wireless Network Using Electrical System
TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.

No need for drilling or wire installation
Network passes through walls and floors
Expand coverage by adding more extenders
Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

AC750 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.

One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.

Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.

Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.

Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.

View real-time powerline speed
LED control (also controlled by LED On/Off button)
Guest network

Specifications:

HARDWARE FEATURES
Plug Type EU
Standards and Protocols HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u
IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz)
Interface TL-WPA7517: 1 Ethernet Port
TL-PA7017: 1 Ethernet Port
Button Pair, Reset, Wi-Fi Clone, LED On/Off
Power Consumption TL-WPA7517: Maximum: 11W, Typical: 6.5W
TL-PA7017: Maximum: 2.9W, Typical: 2.6W
LED Indicator Power, Powerline, Ethernet, Wi-Fi (2.4GHz), Wi-Fi (5GHz)
Dimensions ( W x D x H ) TL-WPA7517: 2.7 x 1.4 x 4.9 in. (69.5 x 35 x 124.1 mm)
TL-PA7017: 2.0 x 1.1 x 2.6 in. (52 x 28.5 x 65 mm)
Range Up to 300 meters/1000 feet over existing electrical wiring
Compatibility Compatible with all HomePlug AV & AV2 standard powerline adapters
Transmission Speeds Powerline: Up to 1000 Mbps
Ethernet: 10/100/1000 Mbps
WIRELESS FEATURES
Wireless Security WPA-PSK / WPA2-PSK, WEP Encrptions
SOFTWARE FEATURES
Management tpPLC: Scan the QR code to download TP-Link tpPLC App.
Modulation Technology OFDM (PLC)
Encryption Powerline: 128-bit AES Encryption
Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions
SOFTWARE
OneMesh OneMesh Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
OTHERS
Certification CE, RoHS
Package Contents AV1000 Powerline Wi-Fi Kit: TL-WPA7517 & TL-PA7017
Ethernet Cable x 2
Quick Installation Guide
System Requirements Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
