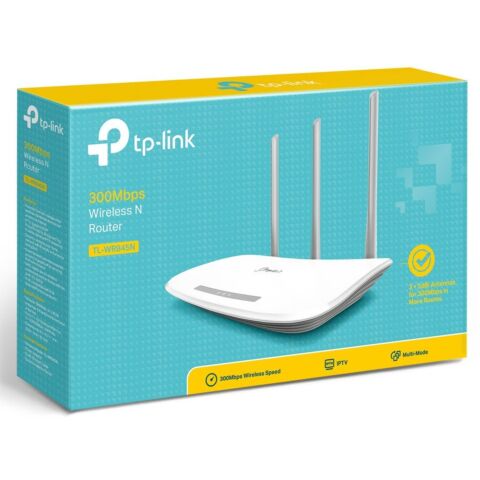

TP-Link TL-WR845N 300Mbps Wireless N Router, Broadband, 3x Antennas
Features:
300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
Three antennas greatly increase the wireless robustness and stability
Easy wireless security encryption at a push of WPS button
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
Compatible with IPv6 -the more recent Internet Protocol version
TP-LINK Tether App allows quick installation and easy management using any mobile device
Speedy Wireless N300
The TL-WR845N provides speedy and stable Wi-Fi for your network needed devices. Up to 300Mbps wireless speed makes it a practical solution for home network applications like files download, video chat or online streaming.
Greater Coverage and Enhanced Reliability
Three 5dBi high gain antennas perfect for small to medium house, a better coverage lets you never lost connections and enjoy more stable connection.
Access Point Mode
Transform your existing wired network to a wireless one.
Range Extender Mode
Boost the existing wireless coverage in your room.
WISP Mode
Connect to the ISP network wirelessly in areas without wired service.
Delicate Appearance
The new design with elegant texture makes it a stylish addition to the decor of any room in your home.
Guest Network Access
Guest Network function provides secure access for guests to sharing your Wi-Fi network. Easy sharing, no worry about your private network.
Easy Parental Control
Parent Control allows parents or administrators to deploy restricted access for children or staff. With URL blocking, you can easily set up a black or white list to limit the level of web access.
Easy Setup and Management
Set up the TL-WR845N in minutes thanks to its intuitive web interface and the powerful Tether app. TP-Link Tether app provides the easiest way to access and manage your router on your smartphone, allows you to start enjoying your new device faster.
Specifications:
HARDWARE FEATURES
Interface 4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
Button Reset Button
WPS Button
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 9.1 x 5.7 x 1.4 in.(230 x 144 x 35 mm)
Antenna 3 x 5dBi fixed Omni Directional Antennas (RP-SMA)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -93dBm@8% PER
6M: -95dBm@10% PER
1M: -98dBm@8% PER
Transmit Power CE:
<20dBm
FCC:
<30dBm
Wireless Functions Enable/Disable Wireless Radio, WMM
Wireless Statistics
Wireless Security WEP, WPA/WPA2
WPA-PSK/WPA2-PSK
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP, Static IP, PPPoE, PPTP(Dual Access), L2TP(Dual
Access), Bigpond
Management Access Control
Local Management
Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List
Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Protocols Support IPv4 and IPv6
Guest Network 2.4GHz Guest Network x1
OTHERS
Certification CE, RoHS
Package Contents Wireless Router TL-WR845N
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an Internet Service Provider (for internet access)
Environment Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
