Ubiquiti 5GHz airMAX IsoStation AC 14dBi 45' Horn Radio | IS-5AC

R2,343.00
In stock
SKU
ISO-514AC

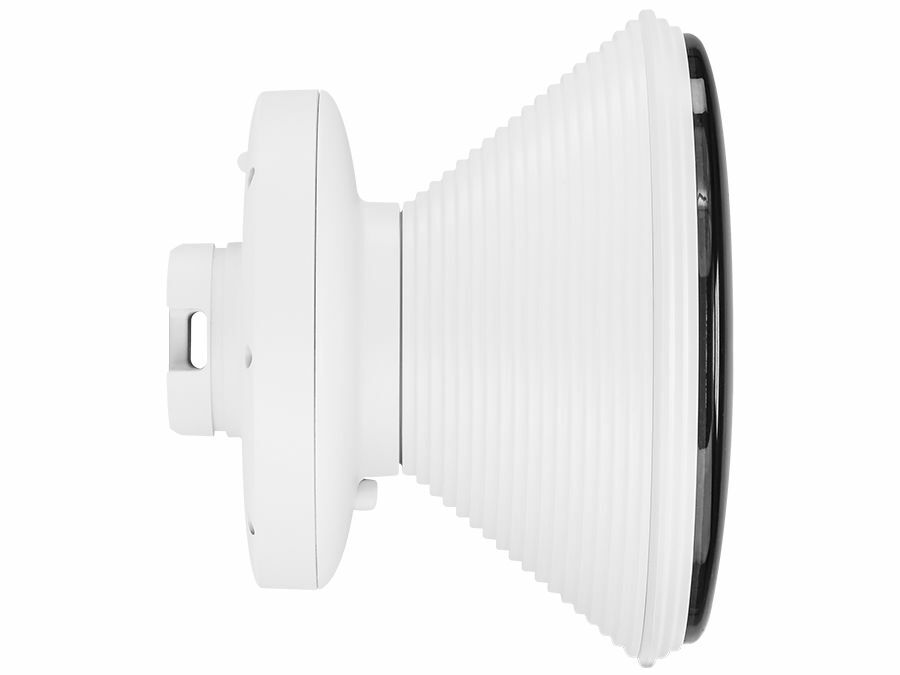

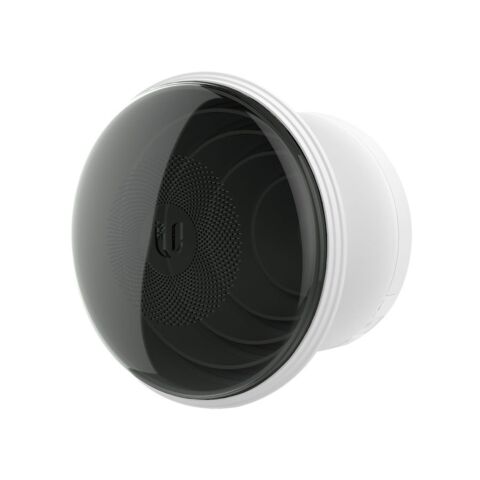

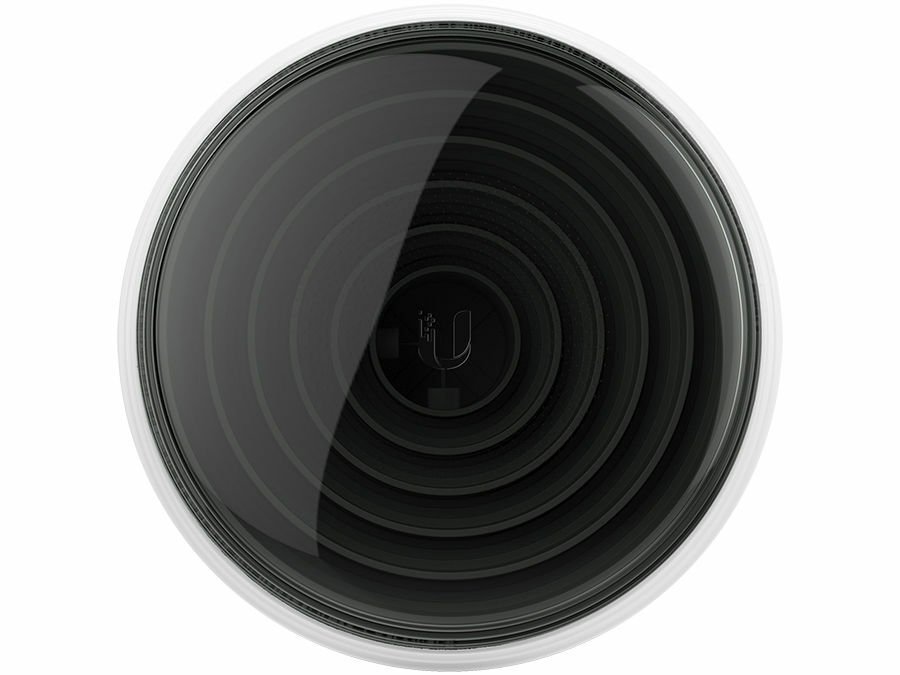

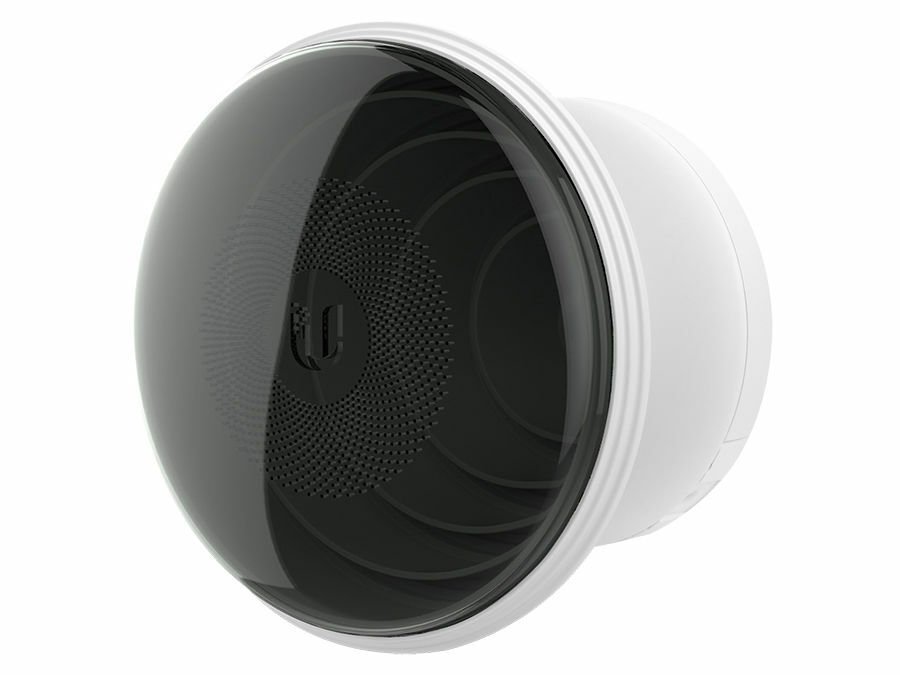

Ubiquiti's ISO-514AC is a shielded airMAX® ac Radio with Isolation Antenna. The IsoStation 5AC provides high isolation solutions in fixed beam-width increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation 5AC. This feature is especially important in an increasingly congested RF environment.

More Information
BrandUbiquiti
Networking Device TypeWireless Antennas

Ubiquiti's ISO-514AC is a shielded airMAX® ac Radio with Isolation Antenna. The IsoStation 5AC provides high isolation solutions in fixed beam-width increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation 5AC. This feature is especially important in an increasingly congested RF environment.

The IsoStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the IsoStation 5AC is versatile and cost-effective to deploy.

The IsoStation 5AC comes with a 45° isolation antenna.

Specifications

Antenna Gain: 14dBi

Beam-width: 45°

Data Rate: 867Mbps

Ethernet Ports: 1x 10/100/1000

Hardware Button: Reset

Interfaces: 1

Max. Power Consumption: 8.5W

Mounting: Pole-Mount

Operating System: airMAX ac

Operating Temperature: -40°C to 70°C

PoE Input: 24V Passive PoE

PoE Output: None

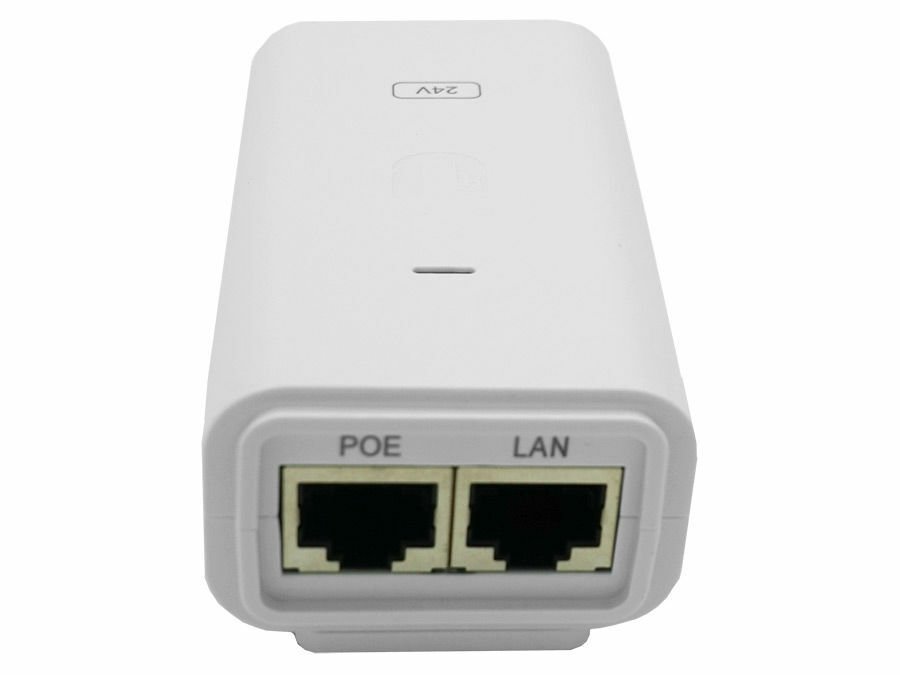

Power Input: 24V 0.5A Gigabit PoE Injector (Included)

Serial Interface: None

SIM Slots: None

Supported Voltage Range: 24V

USB Ports: None


Dimensions: 174 x 174 x 150mm

Weight: 725.7g
