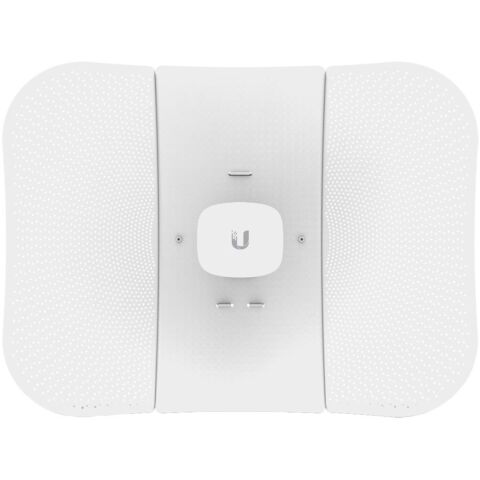

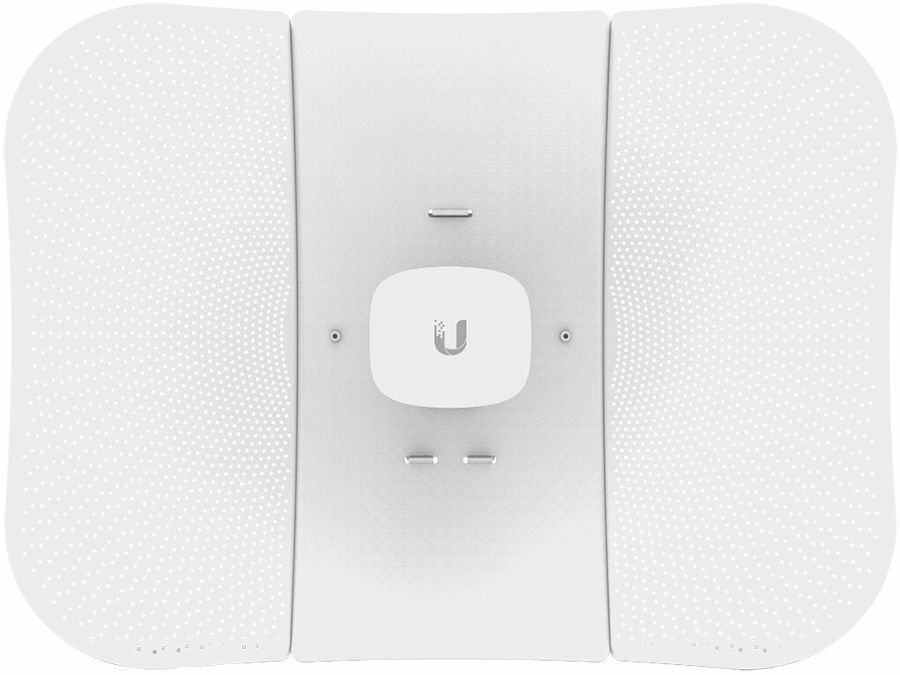

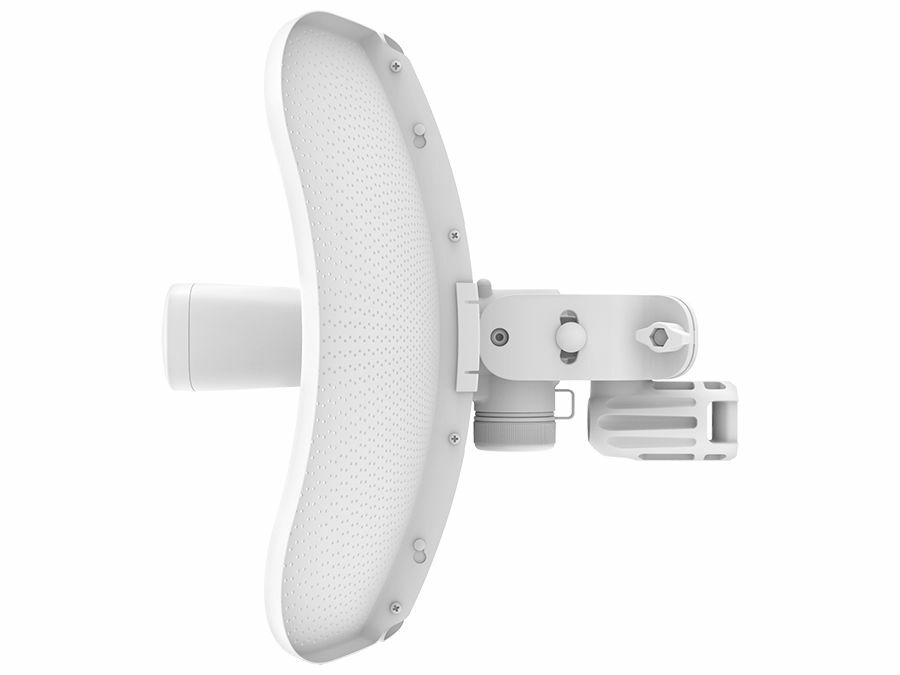

Ubiquiti 5GHz airMAX LiteBeam AC Gen2 23dBi CPE | LBE-5AC-GEN2

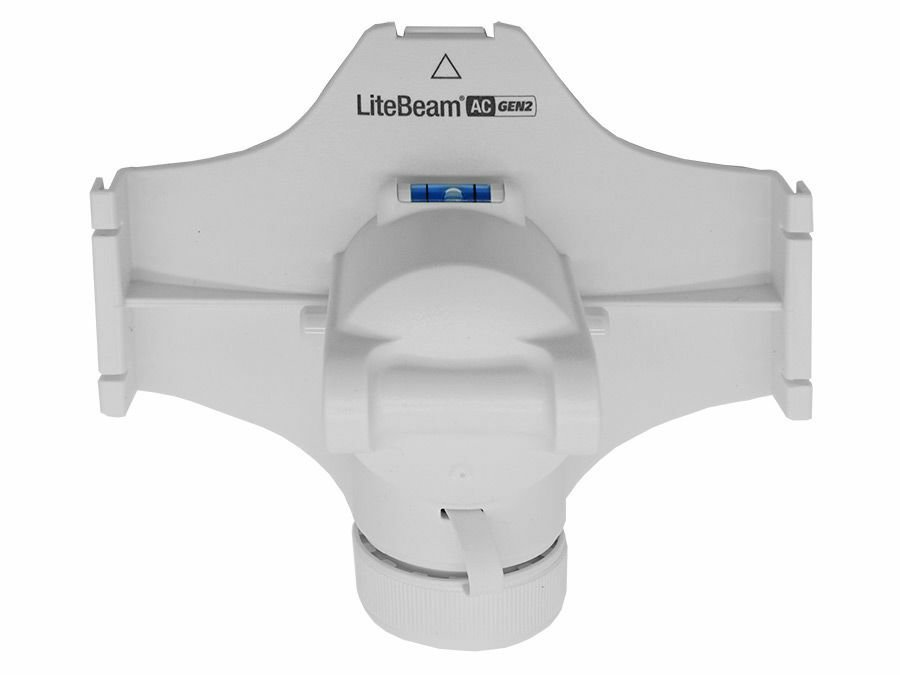

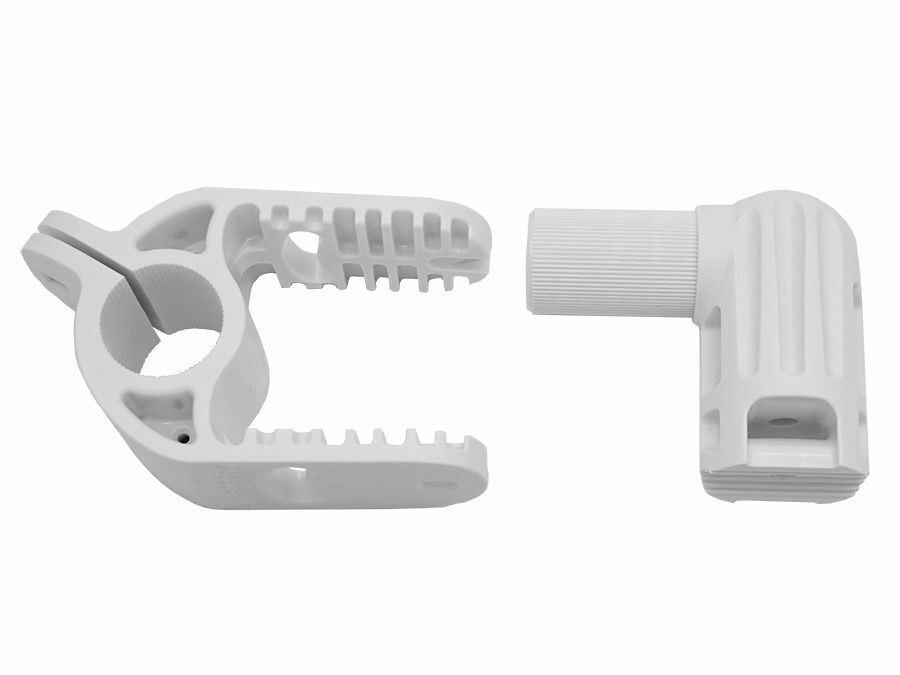

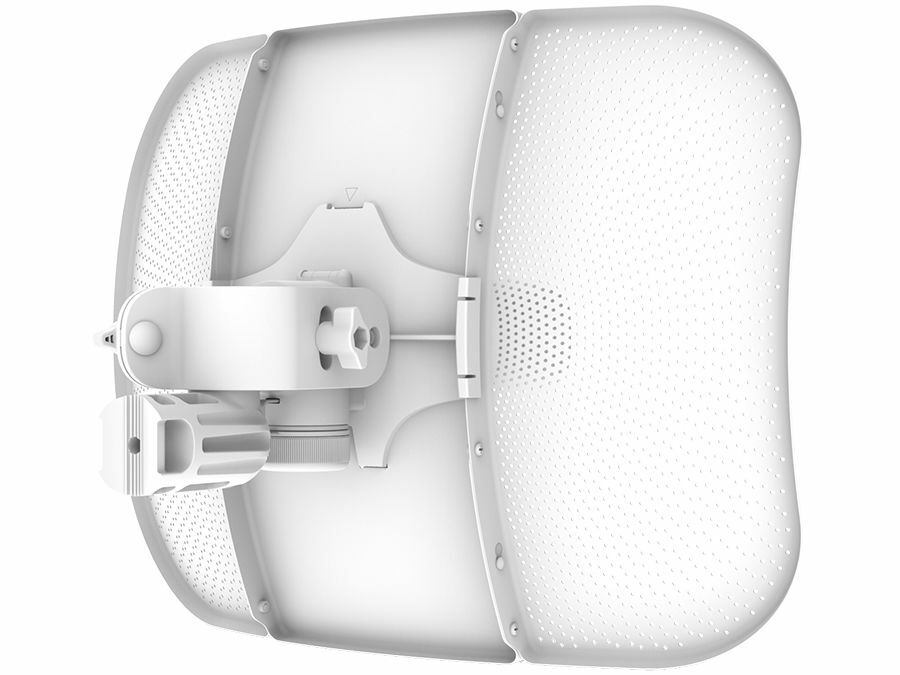

Ubiquiti's LiteBeam 5AC Gen 2 directs RF energy in a tighter beam-width. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. Ubiquiti’s InnerFeed® technology integrates the radio into the feed-horn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. The LiteBeam AC Gen2 is a lightweight, cost effective airMAX® ac CPE with Dedicated Management Radio. It features enhanced protection against power surges and the LiteBeam 5AC Gen 2 also offers a more robust mount with separate azimuth and elevation adjustments.

Specifications

Antenna Gain: 23dBi

Beam-width: 15°

Data Rate: 867Mbps

Ethernet Ports: 1x 10/100/1000

Hardware Button: Reset

Interfaces: 1

Max. Power Consumption: 7W

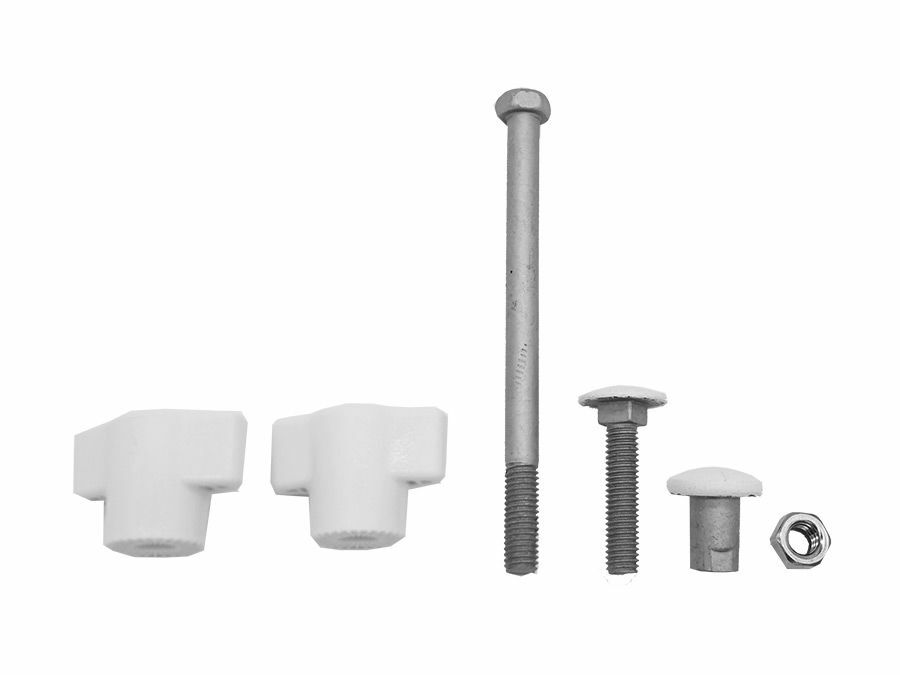

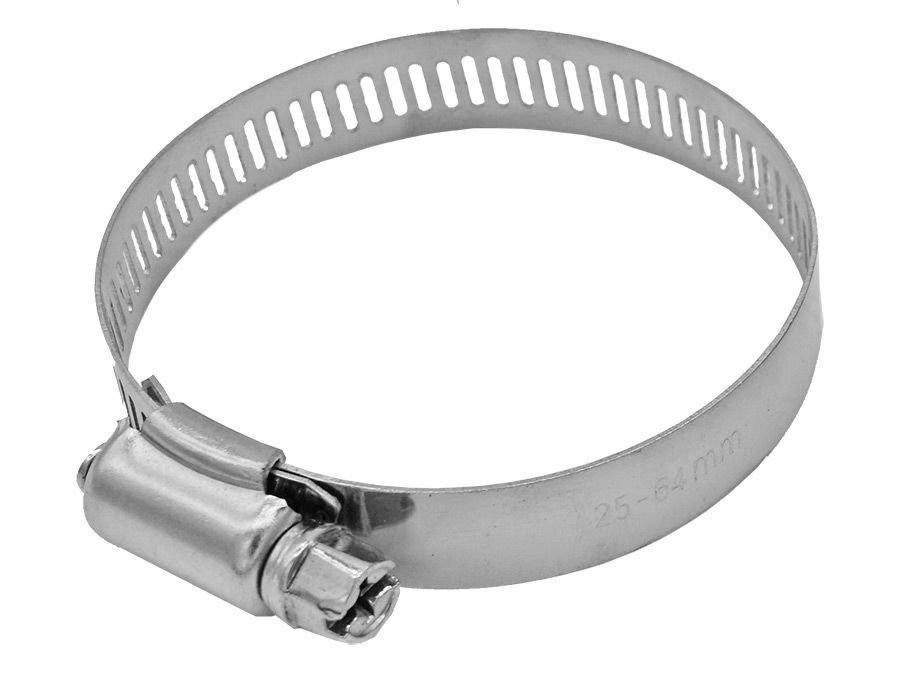

Mounting: Pole-Mount

Operating System: airMAX ac

Operating Temperature: -40°C to 70°C

PoE Input: 24V Passive PoE

PoE Output: None

Power Input: 24V, 0.3A Gigabit PoE Injector (Included)

Serial Interface: None

SIM Slots: None

Supported Voltage Range: 24V

USB Ports: None

Dimensions: 358 x 271.95 x 272.5mm

Weight: 980g
