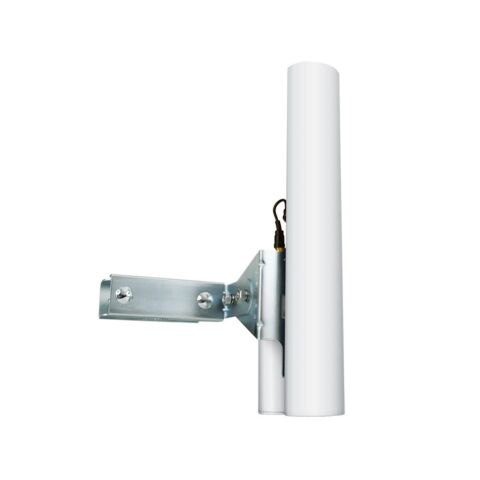

Ubiquiti 5GHz airMAX MIMO Sector 90' 17dBi | AM-5G17-90

Ubiquiti's AIR-S517 achieves gain, cross-pol isolation, and beam-shaping characteristics. Instantly pair it with the Rocket M5 to create a powerful airMAX 2x2 MIMO PtMP BaseStation.

RocketM and airMAX BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing RocketM on airMAX BaseStation/Rocket Antennas requires no specific tools, you simply snap it into place with the mount provided with the Antenna.

Rocket mount and weatherproof RF jumpers are included.

Specifications

Antenna Gain: 17dBi

Beam-width: 90°

Connector: 2x RP SMA Female

Frequency Range: 4.90GHz – 5.85GHz

Polarization: Vertical & Horizontal

Wind Loading: 41.7N @ 200km/h

Dimensions: 367 x 63 x 41mm

Weight: 1.1kg
