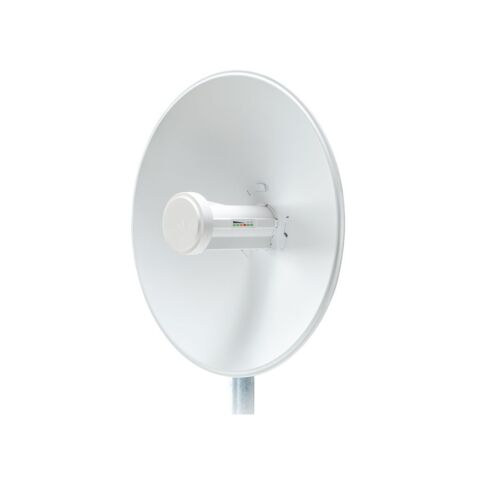

Ubiquiti's PBE-522 PowerBeam directs RF energy in a tighter beam-width. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Ubiquiti’s InnerFeed™ technology integrates the radio into the feed-horn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Providing increased performance from its faster processor and innovative mechanical design at a low cost, the PowerBeam is extremely versatile and cost-effective to deploy.
Specifications
Antenna Gain: 22dBi
Beam-width: 18°
Data Rate: 300Mbps
Ethernet Ports: 1x 10/100
Hardware Button: Reset
Interfaces: 1
Max. Power Consumption: 6W
Mounting: Pole-Mount
Operating System: airMAX
Operating Temperature: -40°C to 70°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Passive PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 24V
USB Ports: None
Dimensions: 325 x 325 x 256mm
Weight: 1.203kg
