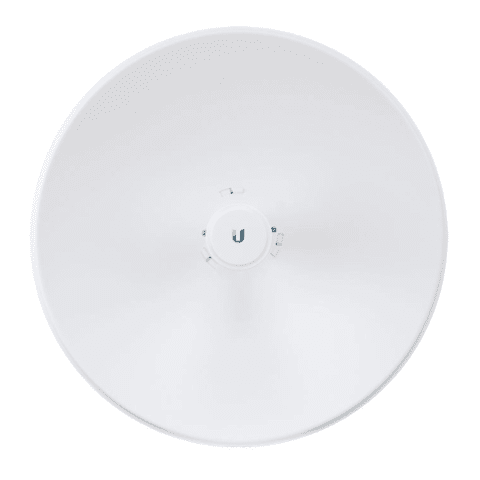

Ubiquiti 5GHz PowerBeamAC Gen2 25dBi | PBE-5AC-GEN2

Ubiquiti's PowerBeam 5AC Gen 2 directs RF energy in a tighter beam-width. With the focus in one direction, the PowerBeam 5AC Gen 2 blocks or spatially filters out noise, so that noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The PowerBeam AC Gen2 is a 5GHz, high-performance airMAX ac bridge that features InnerFeed® technology that integrates the radio into the feed-horn of an antenna, thus eliminating the need for a cable and improving performance due to the fact that there is no cable losses.

Specifications

Antenna Gain: 25dBic

Beam-width: 12°

Data Rate: 867Mbps

Ethernet Ports: 1x 10/100/1000

Hardware Button: Reset

Interfaces: 1

Max. Power Consumption: 8.5W

Mounting: Pole-Mount

Operating System: airMAX ac

Operating Temperature: -40°C to 70°C

PoE Input: 24V Passive PoE

PoE Output: None

Power Input: 24V 0.5A Gigabit PoE Injector (Included)

Serial Interface: None

SIM Slots: None

Supported Voltage Range: 20V-26V

USB Ports: None

Dimensions: 420 x 420 x 230mm

Weight: 2.22kg
