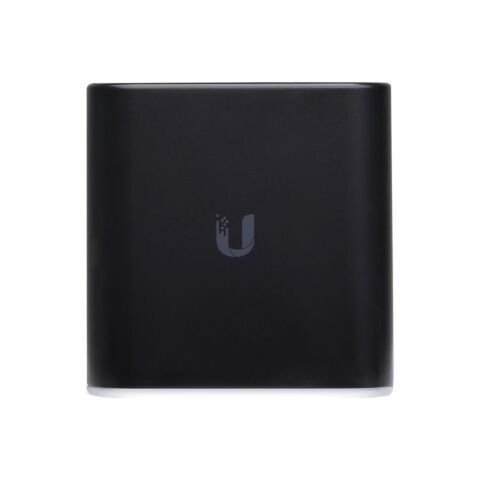

Ubiquiti AirCube AC WiFi Router | ACB-AC

Ubiquiti's ACB-AC is a dual-band, 802.11ac airMAX, Home Wi-Fi Access Point. It features a compact design and integrated 24V PoE pass-through. The airCube™ is a home Wi-Fi access point designed to work with airMAX® CPEs. The airCube's innovative super antenna offers wide coverage and can be powered by 24V Passive PoE. The unit also supports passive PoE pass-through to power an airMAX CPE. It can be installed and configured via the UNMS app for iOS and Android.

Specifications

Antenna Gain: 2.4GHz 4dBi ; 5.8GHz 5dBi

Beam-width: 360°

Data Rate: 2.4GHz 300 Mbps ; 5.8GHz 866.7Mbps

Ethernet Ports: 4x 10/100/1000

Hardware Button: None

Interfaces: 4

Max. Power Consumption: 8.5W

Mounting: Desktop

Operating System: airOS

Operating Temperature: -10°C to 50°C

PoE Input: 24V Passive PoE on Port 1

PoE Output: 24V Passive PoE Pass-Through on Port 4

Power Input: 24V, 0.83A Power Supply (Included)

Serial Interface: None

SFP Ports: None

Supported Voltage Range: 22-26V

USB Ports: None

Dimensions: 87.80 x 89.50 x 89.25 mm

Weight: 280 g
