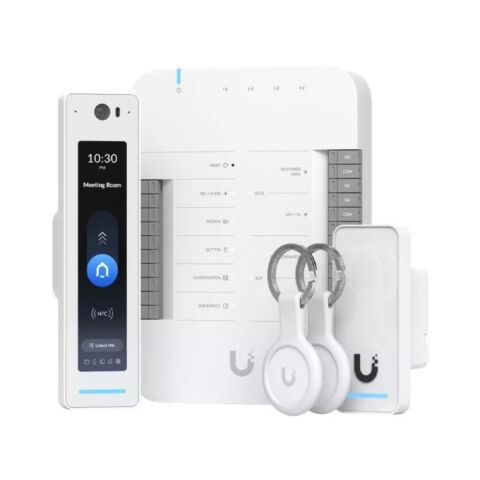

Ubiquiti's UA-G3SK-PRO starter kit includes a Door Hub, an IP55 G3 Reader Pro with integrated camera, an IP55 G3 Reader, and 2x Pocket Keyfobs. This starter kit provides complete entry and exit control for a single door and includes Touch Pass support, for which users will receive 10 free Touch Passes in the first year; thereafter, passes are billed annually per user. The kit can be configured and managed with the UniFi Access Application.
Specifications:
Door Hub
Button: Reset
Terminal Input: 2x Door exit request; 1x Door position ; 1x Emergency
Ethernet Ports: 5x 10/100/1000
Lock Terminals: 1x 12V 1A
Mounting: DIN-rail (Included)
Operating Temperature: 0°C to 40°C
Max Power Consumption: 30W
PoE Input: PoE++ (50V DC, 1A)
PoE Output: 4x 802.3af
Power Input: PoE++ ; UL 294 Power-limited Class 2 PSU ; UL 60950-1/62368-1 LPS/PS2 PSU
Supported Doors: 1
Dimensions: 174.9 x 126 x 32.9 mm
Weight: 363g
G3 Reader Pro
Button: Reset
Connectivity: BLE 4.2 or NFC
Ethernet Ports: 1x 10/100/1000
Mounting: Wall, gang-box mount (Included)
Operating Temperature: Device: -30°C to 45°C; Display: -10°C to 45°C
Max Power Consumption: 6W
Power Input: PoE (802.3af, Not Included), UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Supported Voltage: 48V
Dimensions: 160 x 40.4 x 40.55 mm
Weight: 136g
G3 Reader
Button: Reset
Connectivity: BLE 4.1 or NFC
Ethernet Ports: 1x 10/100
Mounting: Wall, gang-box mount (Included)
Operating Temperature: Device: -30°C to 45°C
Max Power Consumption: 5W
Power Input: PoE (802.3af, Not Included), UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Supported Voltage: 48V
Dimensions: 93 x 40 x 36.5 mm
Weight: 82g
