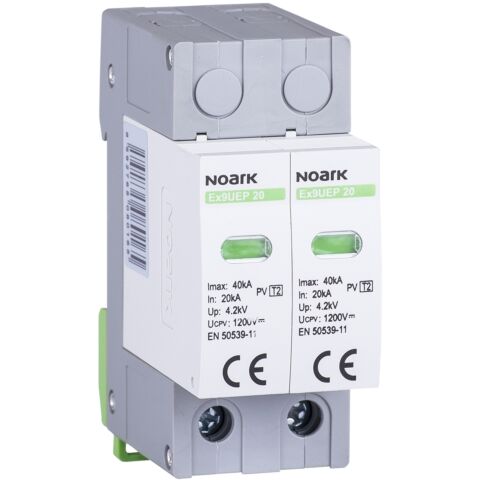

Unbranded Solar PV DC Surge Arrestor 20kA 2 pole 1000V
Overview:
108018 Surge Protective Device Ex9UEP 20 2P 600
DC Surge protection devices Ex9UEP are suitable for photovoltaic applications. These SPDs are designed and tested according PV T2 class from EN 50539-11 standard. Indication front window helps users to know the status of device and remote-signal port is able to provide remote indication and alarm. Plug-in module design make it convenient to change module without device disconnection.
Specifications:|
Characteristics
PAREMETER VALUE
Category type 2 YES
Signalling at the device Optic
Max. conductor cross section solid (solid, stranded) 25
Short-circuit-proof NO
System configuration DC
Construction size 2 modular spacing
With remote signalling contact NO
Degree of protection (IP) IP20
Mounting method DIN rail (top hat rail) 35 mm
Integrated backup fuse NO
Nominal discharge surge current (8/20) 20
Type of poles 2
Max. conductor cross section flexible (fine-strand) 25
