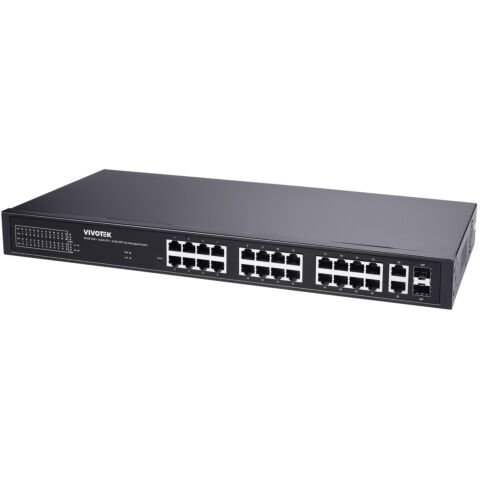

Vivotek 24x GE PoE & 2x GE UTP & 2x GE SFP Lite Managed PoE Switch, 24x Gigabit PoE Ports, 2x Gigabit RJ45 Port, 2x SFP Port, 56 Gbps switching Bandwidth, Port 1-4 at 90W PoE Output Power, Port 5-24 at 30W PoE Output Power, 380W total PoE Power budget, AW-GEL-285A-380
Overview:
AW-GEL-285A-380
4xGE bt 90W PoE + 20xGE 30W PoE + 2xGE UTP + 2xGE SFP Lite Managed Switch
Specifications:
Model AW-GEL-285A-380
Product Description 4xGE bt 90W PoE + 20xGE 30W PoE + 2xGE UTP + 2xGE SFP Lite Managed Switch
Port Configuration
10M/100M/1G PoE Port 24
10M/100M/1G RJ45 Port 2
100M/1G SFP Port 2
IEEE 802.3x V
IEEE 802.3u V
IEEE 802.3ab V
Total Ports 28
HW Performance
Switching Bandwidth 56 Gbps
Buffer Memory 4.1 Mb
MAC Address 8K
Jumbo Frames 9216 Bytes
Lite Managed Features
Lite Managed Features VLAN
802.1Q Tag-based VLAN 4096 VLAN IDs
Port-based VLAN V
Spanning Tree Protocol
IEEE 802.1d (STP) V
IEEE 802.1w (RSTP) V
Link Aggregation Control Protocol V
QoS
CoS port-based V
CoS 802.1p-based V
CoS DSCP-based V
Loop Protection V
Flow Control V
Strom Control V
Port-Based Mirroring V
Port Isolation V
Bandwidth Control V
Satic MAC V
PoE Management
PoE On/Off Control V
PoE Auto Checking V
Non-Stop PoE V
Extend PoE Mode (250M) V
PoE Function
IEEE 802.3 PoE Standard Compliant 802.3 af/at/bt
Number of PoE Output Port 24
PoE Output Power Port 1-4 bt 90W
Port 5-24 at 30W
Totoal PoE Power Budget 380W
PoE Pin Assignment Port 1-4: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)
Port 5-24: 2 pairs 1/2 (-), 3/6 (+)
PoE Surge Protection 4KV Per PoE port
Environmental Specifications
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10 ~ 90% RH
Mechanical Specifications
Dimensions 442 (W) x 212 (D) 44 (H) mm
Weight 2,74 kg
Power Source
AC Input 100V ~ 240V
Frequency 50 ~ 60 Hz
Power Consumption 400W
Certifications
Certifications CE, FCC, LVD, VCCI
Accessories
Included Accessories Power Cord, QIG, Rack Mount Kit
