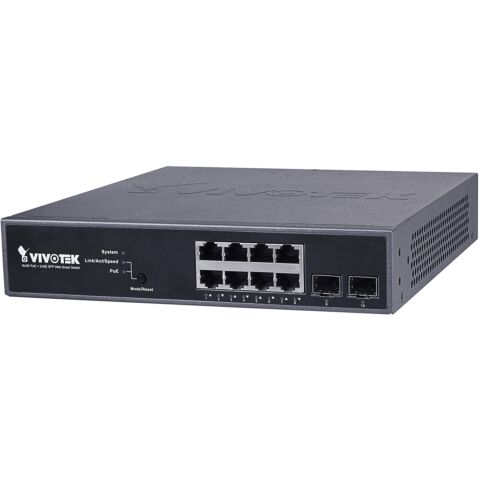

Vivotek 8x Gigabit PoE + 2x Gigabit SFP Web Smart managed Switch, 20Gbps switching Bandwidth, 8x 10M/100M/1G RJ45 Port, 2x 100M/1G SFP Port
Overview:
AW-GEV-104B-130
8xGE PoE + 2xGE SFP Web Smart Managed Switch
The AW-GEV Web Smart series is a VivoCam web smart managed PoE switch, combining powerful web smart managed features with graphic view functions, providing better functionality and usability. With single AW-GEV Web Smart series allows users to find all network devices and deploy a network system automatically. The AW-GEV Web Smart series also provides high performance HW and environmental flexibility for SMBs and Enterprises. In addition, embedded surveillance features Graphic Views, such as Topology View/Floor View/Map View for managing, controlling and understanding network structure and device status, as well as Google Map integration to view system status for outdoor applications. The device status and traffic monitoring functions also help users clarify and troubleshoot any connection or device issues. The AW-GEV Web Smart series is ideal for delivering management simplicity, better user experience, and lowering total cost of ownership.
Specifications:
Model AW-GEV-104B-130
Product Description 8xGE PoE + 2xGE SFP VivoCam Web Smart Managed PoE Switch
Port Configuration
10M/100M/1G RJ45 Port 8
100M/1G SFP Port 2
Total Ports 10
Auto MDI/MDI-X V
IEEE 802.3x V
IEEE 802.3u V
IEEE 802.3ab V
HW Performance
Switching Bandwidth 20Gbps
Buffer Memory 4.1Mb
MAC Address 8K
Jumbo Frames 10000 Bytes
Management
Auto Search VIVOTEK Device up to 256 pcs
Surveillance Device Management List V
DHCP Server Function V
VIVOTEK Device Account/Password Setting V
VIVOTEK Device Static IP Setting V
VIVOTEK Device Grouping Setting for VLAN V
VIVOTEK Device Name Edit V
VIVOTEK Camera/Video Server Reboot/Restore Default V
VIVOTEK Device Re-direct Link V
VIVOTEK Device On/Off Line Status V
E-Map View
Topology View V
Floor View V
Google Map View V
Maintenance
VIVOTEK Camera/Video Server Configuration File Export/Import V
VIVOTEK Cameras/Video Server Configuration File Management V
Floor Image Management V
Export Surveillance Management Device List V
Security V
Trouble Shooting V
Traffic Monitoring V
Spanning Tree
IEEE802.1D (STP) V
IEEE802.1w (RSTP) V
IEEE802.1s (MSTP) V
Trunking
IEEE802.1d (LACP) V
Static Aggregation V
VLAN
802.1Q Tag-based VLAN 4096 VLAN IDs
Port-based VLAN V
Private VLAN Edge (PVE) V
GARP VLAN V
Q-in-Q (Double Tag) V
Protocol-based VLAN V
MAC-based VLAN V
Voice VLAN V
IP Subnet-based VLAN V
Multicast VLAN Registration (MVR) V
IGMP Snooping (v1/v2/v3) V
DHCP Relay V
MLD v1/v2 Snooping V
QoS Functions
Hardware Queues 8
Classification
Port Based V
802.1p V
Rate Limiting
Ingress V
Egress V
Per Port V
Priority Queue Scheduling
WRR V
DSCP & Class of Service V
IEEE802.1x
RADIUS Authentication V
IGMP-RADIUS Based V
Secure Sockets Layer (SSL) V
Port Security V
IP Source Guard V
Storm Control V
Layer 2 Isolation Private VLAN Edge (PVE) V
RADIUS/TACACS+ V
Loop Detection V
DHCP Snooping V
Management
SNMP (v1, v2c, v3) V
RMON (1,2,3 & 9 groups) V
DHCP Server & Client V
Port Mirroring V
UPnP V
LLDP (IEEE802.1ab) V
LLDP-MED V
S-Flow V
Firmware Upgrade V
NTP V
TFTP V
PoE Management
PoE On/Off Control V
PoE Alive Checking for PD V
PoE Scheduling V
Power Delay V
PoE Functions
IEEE 802.3af/at PoE Standard Compliant V
Number of PoE Output Port 8
PoE Output Power Per Port 54VDC, Max. 30W
Total PoE Power Budget 130W
PoE Pin Assignment 1/2(+), 3/6(-)
Surge Protection Per PoE Port 6KV
Environmental Specifications
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10 ~ 90% RH
Mechanical Specifications
Dimensions 220 (W) x 44 (H) x 242 (D) mm
Weight 1.95 kg
Power Source
AC Input 100V ~ 240V
Frequency 50 ~ 60 Hz
Power Consumption 150W
Certifications
Certifications CE, FCC, LVD, VCCI, C-Tick
Accessories
Included Accessories Power Cord, QIG, CD Manual, Rack Mount Kit
