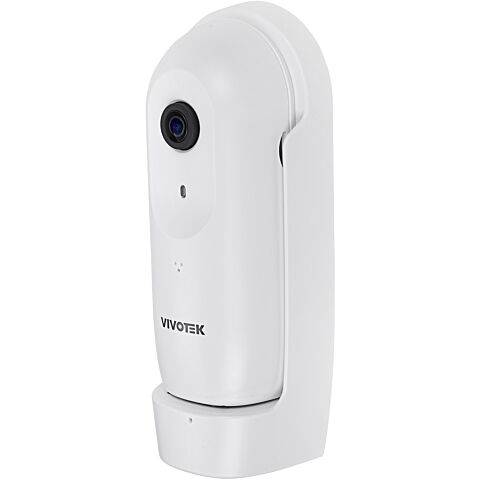

VIVOTEK CC9160-H Indoor 180 degree 2MP IP Network camera, 256MB Flash, 512MB RAM, 1/2.8" progressive CMOS image sensor, 1920x1080 Maximum Resolution, Fixed-focal Lens Type, WDR Pro, H.265, H.264, MJPEG Video Compression, 3 simultaneous streams, 120 dB Dynamic range, One-Way audio, Built-In Microphone, Five-window Video motion detection, RJ-45 cable connector for 10/100 Mbps Network/PoE connection, IEEE 802.3af PoE Class 2 power Input
Overview:
CC9160-H
2MP, WDR Pro, 180° Panoramic View, Smart Stream III
Trend Micro IoT Security
180° Panoramic View
H.265, H.264, MJPEG
WDR Pro
SNV
Features:
VIVOTEK's CC9160-H is a low-profile network camera especially designed for 180° panoramic indoor surveillance. The inconspicuous design makes it a great choice for retail, convenience stores, hotels, classrooms, and cafes. With 120 dB WDR Pro for high contrast lighting environments, the 180° panoramic views in 1080P provides amazing situational surveillance coverage. The unique mounting design facilitates easy installation onto any wall. A built-in microphone further increases the level of surveillance while recording sound within a 5 meter radius. Included digital input and digital output connections also add to the CC9160-H's security capabilities.
2-Megapixel CMOS Sensor
180° Horizontal Panoramic View
Compact, Low-Profile Design
30 fps @ 1920x1080
Smart Stream III to Optimize Bandwidth Efficiency
WDR Pro 120 dB
Digital Input, Digital Output, Built-in Microphone
Trend Micro IoT Security
Specifications:
System Information
Model CC9160-H
CPU Multimedia SoC (System-on-Chip)
Flash 256MB
RAM 512MB
Camera Features
Image Sensor 1/2.8" Progressive CMOS
Max. Resolution 1920x1080
Lens Type Fixed-focal
Focal Length f = 1.66 mm
Aperture F1.95
Iris Type Fixed-iris
Field of View 180° (Horizontal)
100° (Vertical)
180° (Diagonal)
Shutter Time 1/5 sec. to 1 / / / 32,000 sec.
WDR Technology WDR Pro
Minimum Illumination 0.03 lux @ F1.95 (Color)
Tilt Range 15° with tilt bracket
Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate H.265: 30 fps @ 1920x1080 (WDR Pro on/off)
H.264: 30 fps @ 1920x1080 (WDR Pro on/off)
MJPEG: 30 fps @ 1920x1080 (WDR Pro on/off)
Maximum Streams 3 simultaneous streams
S/N Ratio 66.2 dB
Dynamic Range 120 dB
Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III
Image Settings General settings: video title and time stamp overlay, video orientation (flip, mirror), Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur), Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR, Privacy mask, Scheduled profile settings
Audio
Audio Capability One-way Audio
Audio Compression G.711, G.726
Audio Interface Built-in microphone
Effective Range 5 meters
Network
Users Live viewing for up to 10 clients
Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF Profile G, S, T supported
Solution Integration
Video Motion Detection Five-window video motion detection
VADP Package Trend Micro IoT Security (1-year free trial), VIVOCloud, Stratocast
Alarm and Event
Event Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot, digital input
Event Action Event notification via email, HTTP, FTP, NAS server, SD card, push notification, digital output
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection
DI
DO
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE Class 2
Power Consumption Max. 5 W
Dimensions 120 (H) x 52 (W) x 39 (D) mm (Body only)
147 (H) x 61 (W) x 41 (D) mm (w/ Bracket)
Weight 81 g (camera body)
127 g (w/ bracket)
Certifications EMC: CE (EN 55032 Class B, EN 55035), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032: 2015 +A11: 2020), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), UKCA (BS EN IEC 62368-1: 2020 +A11: 2020), IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
Operating Temperature Starting Temperature: 0°C ~ 45°C (32°F~ 113°F)
Working Temperature: -10°C ~ 45°C (14°F~ 113°F)
Humidity 90%
System Requirements
Operating System Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser Chrome 58.0 or above
Internet Explorer 10/11
Other Players VLC: 1.1.11 or above
Included Accessories
Packing Contents Quick installation guide, mounting bracket, tilt bracket, screw pack
