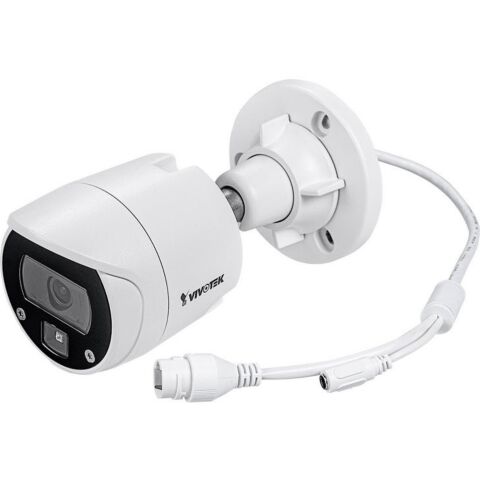

Vivotek IB9369 Outdoor IK10 Bullet; H.265; 2MP; 2.8mm; 30M IR; WDR Enhanced, Smart Motion, POE/12V DC Input
Overview:
VIVOTEK IB9369 is an affordable outdoor dome network camera equipped with a 2M sensor enabling resolution of 1920x1080 at 30 fps. IB9369 offers fixed-focal lens for different user scenarios. IR illuminators are equipped with 30-meter effective range for better night visibility. For harsh outdoor environment, IB9369 is encased in IP66 and IK10 housing. Two power input options are available: PoE (Power-over-Ethernet) and DC power, providing users with installation flexibility. In order to facilitate on-board storage and data portability, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording. Lastly the IB9369 uses H.265 compression technology, which helps to reduce bandwidth and storage consumption.
Features:
H.265 Compression Technology
30 fps @ 1920x1080
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Smart IR Technology to Avoid Overexposure
Smart Motion Detection to Reduce False Alarms
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Specifications:
System Information
Model IB9369 (2.8mm)
CPU Multimedia SoC (System-on-Chip)
Flash 256 MB
RAM 256 MB
Camera Features
Image Sensor 1/3.1" Progressive CMOS
Max. Resolution 1920x1080 (2MP)
Lens Type Fixed-focal
Focal Length IB9369(2.8mm): f = 2.8 mm
Aperture IB9369(2.8mm): F2.0
Iris Type Fixed iris
Field of View IB9369(2.8mm):
118° (Horizontal)
65° (Vertical)
140° (Diagonal)
Shutter Time 1/5 sec. to 1/32, 000 sec.
WDR Technology WDR Enhanced
Day/Night Yes
Removable IR-cut Filter Yes
IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
Minimum Illumination IB9369(2.8mm):
0.08 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
Tilt Range 90°
Rotation Range 180°
Pan/Tilt/Zoom Functionalities ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate 30 fps @ 1920x1080
Maximum Streams 2 video streams (Up to 7 configurable profiles)
S/N Ratio 59 dB
Dynamic Range WDR Support
Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings; Pixel calculator
Network
Users Live viewing for up to 10 clients
Security Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, user access log, user account management
Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF Profile G, S, T supported, specification available at www.onvif.org
Solution Integration
Smart Motion Detection Five-window video motion detection, people detection, time filter
VADP Package Smart Motion Detection
Alarm and Event
Event Trigger Camera tampering detection, Manual trigger, Motion detection, Periodical trigger, Recording notification, SD card life expectancy, System boot
Event Action Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, SFTP, NAS server, SD card
General
Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator System power and status indicator
Power Input IEEE 802.3af Class 0 PoE, DC 12V
(Simultaneous Power Redundancy Supported)
Power Consumption PoE:
Max. 6.49W/4W (IR on/off)
DC 12V:
Max. 5.1W/3.4W (IR on/off)
Dimensions Ø 91.1 x 181.5 mm
Weight 671 g
Certifications EMC: CE (EN55032 Class A, EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003 issue 7, RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471, IEC/EN 60950-22); IA: BIS (IS 13252):BSMI;Environment: IK10 (IEC 62262), IP66 (IEC 60529)
Operating Temperature Starting Temperature:
-30°C ~ 50°C (-22°F ~ 122°F)
Working Temperature:
-30°C ~ 55°C (-22°F ~ 131°F) (IR off)
-30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity 95% RH (non-condensing)
System Requirements
Operating System Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser Chrome 58.0 or above
Internet Explorer 10/11
Other Players VLC: 1.1.11 or above
Included Accessories
Packing Contents Quick installation guide, alignment sticker, screw pack, cable gland
