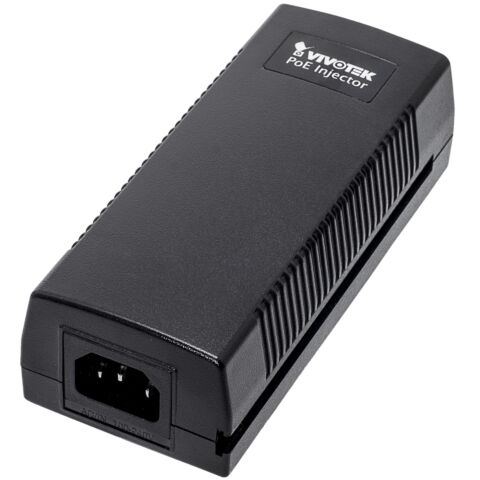

Vivotek AP-FIC-010A-015 Indoor IEEE802.3af FE PoE Injector 15W
Specifications
Product Code AP-FIC-010A-015
Model AP-FIC-010A-015
IP Camera Compatibility
Video Resolution Megapixel/D1/VGA
Video Compression MJPEG/MPEG-4/H.264/H.265
Compatible Camera List VIVOTEK Network Cameras
Ethernet
Fast Ethernet (RJ45) 1
Standards
IEEE 802.3 10-BASE-T (Ethernet) Supported
IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
IEEE 802.3af Power over Ethernet Supported
Transmission Media
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5, 5e UTP/STP
PoE Function
Number of PoE Out Ports 1
PoE Output Power 54VDC/15.4W
802.3af Standard Compatible Yes
Over Current Protection Supported
Circuit Shorting Protection Supported
Power Pin Assignment 1/2(+), 3/6(-)
PoE PD Auto Detection Supported
General
LED Indicators Power, PoE
Power Input 100~240VAC / 50~60Hz
Power Consumption 19W
Dimensions 146 (L) x 64 (W) x 42 (H) mm
Weight 0.2 kg
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Humidity Operating: 10~90% (Non-condensing)
Storage: 10~90% (Non-condensing)
Safety Certifications CE, C-Tick, FCC, VCCI, LVD
Accessory
Included Accessories Power cord, QIG
