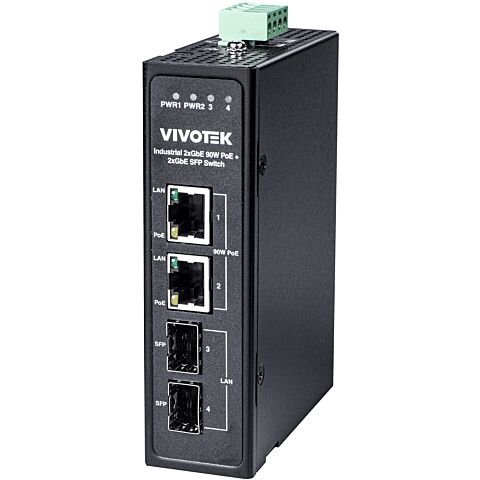

Vivotek Industrial 2x 90W bt PoE + 2x SFP Switch

Name: Vivotek Industrial 2x 90W bt PoE + 2x SFP Switch
Brand: Vivotek
SKU: VIVOTEK AW-IHB-0400
Price: 5030 ZAR
Availability: InStock

In stock

SKU

VIVOTEK AW-IHB-0400

Be the first to review this product

Special Price R 5,030.00 Regular Price R 7,872.00

Brands - Cliqtosave Online:

Delivery Turnaround Time:
1 - 2 Business Days (Gauteng & JHB Areas)
2 - 3 Business Days (Main Centers)
3 - 4 Business Days (Regional Areas)

Please note: pricing visible is already subject to the following discount applicable only to EFT payments.

2.53% Ozow InstantEFT Payment, Capitec Pay via Ozow Payment
3.40% SnapScan Payment
6.04% PayFlex Payment
3.80% PayFast Payment (Credit/Debit Cards, American Express, Mobicred, SamsungPay, QR Code Apps, Store Card, Zapper)
3.44% PeachPayments (Visa/Master Credit/Debit Card, American Express, Scan to Pay, 1ForYou (1Voucher), Secure InstantEFT)

Industrial 2 x 90W bt PoE + 2 x SFP Switch

More Information
Brand	Vivotek
Networking Device Type	SFP Switches

Details

Vivotek Industrial 2x 90W bt PoE + 2x SFP Switch, 2x Gigabit Ethernet 10/100/1000 Mbps (RJ45), 2x Gigabit Ethernet 100/1000 Mbps (SFP), 8 Gbps switching Bandwidth, 180W total PoE Power budget, 2x 90W bt PoE, AW-IHB-0400

Overview:

AW-IHB-0400
Industrial 2 x 90W bt PoE + 2 x SFP Switch

Specifications:

Model AW-IHB-0400
Networking Specifications
Gigabit Ethernet 10/100/1000Mbps (RJ45) 2
Gigabit Ethernet 100/1000Mbps (SFP) 2
Ethernet Performance
Switching Bandwidth 8 Gbps
Mac Table 4 K
Buffer Memory 128 KB
Forwarding Capacity 11.904 Mpps
Jumbo Frame 9 KB
Transmission Method Store and Forward
Auto-MDI/MDI-X, Auto-Negotiation Supported
Standards
IEEE 802.3 10-BASE-T (Ethernet) Supported
IEEE 802.3u 100-BASE-TX (Fast Ethernet) Supported
IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) Supported
IEEE 802.3z 1000-BASE-X (Gigabit Ethernet) Supported
IEEE 802.3af/at/bt Power over Ethernet Supported
IEEE 802.3az Energy Efficient Ethernet Standard Supported
Power Specifications
Power Input PW1: 48~56VDC for 30W 802.3af/at
52~56VDC for 90W 802.3bt
PW2: 48~56VDC for 30W 802.3af/at
52~56VDC for 90W 802.3bt
Redundant Power Backup
Number of PoE Out Ports 2 x 90W bt PoE
Max. PoE Output Power/per Port 54VDC/90W
Total PoE Power Budget 180W
Max. Power Consumption 185W
PoE Pin Assignment 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE PD Auto Detection Supported
Over Current Protection Supported
Circuit Shorting Protection Supported
Surge Protection/Per PoE Port 6KV
General
Mounting DIN Rail/Wall Mount
Operating Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity 10% to 90% non-condensing
Dimensions 87(L) x 33(W) x 120(H) mm
Weight 0.3 kg
Certifications CE, FCC, LVD EN62368-1, VCCI
