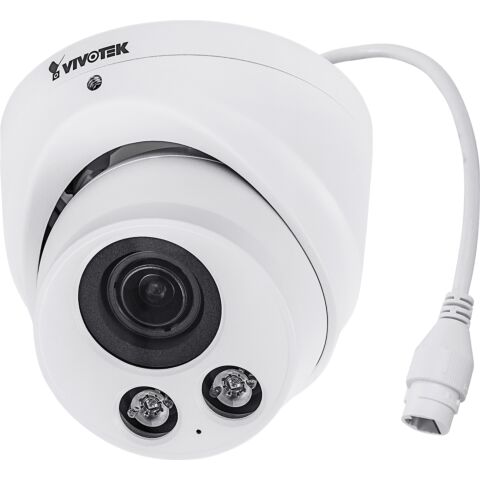

Vivotek IT9388-ht Turret 5MP 20fps H.265 IP camera, 1/2.7" progressive CMOS image sensor, 2560 x 1920 (5MP) Maximum Resolution, Motorized / Vari-Focal /remote focus 2.8 ~ 12 mm Lens Type, Fixed iris, WDR Pro, H.265 Compression technology, Supreme night visibility, Smart stream III, Built-in IR illuminators effective up to 30 meters, Weather-proof IP66-rated, Vandal-proof IK10-rated housing, One-way audio, Built-in Microphone, RJ-45 cable connector for 10/100 Mbps Network/PoE connection, IEEE 802.3af PoE Class 0 power Input. Focal Length: f = 2.8 ~ 12 mm; Aperture: F1.4 ~ F2.8; Auto-iris: Fixed iris; Field of View: 88 degrees ~ 30 degrees (Horizontal); 65 degrees ~ 23 degrees (Vertical); 115 degrees ~ 38 degrees (Diagonal)
Overview:
IT9388-HT - 5MP 20fps, H.265, 2.8~12mm, 30M IR, WDR Pro, SNV
H.265, H.264, MJPEG
SNV
WDR Pro
Smart Stream III
Smart IR
Trend Micro IoT Security
Features:
H.265 Compression Technology
20 fps @ 2560x1920 (WDR Pro on)
2.8~12 mm, Remote Focus
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
SNV (Supreme Night Visibility) for Low Light Conditions
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Trend Micro IoT Security
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Built-in Microphone
Specifications:
System Information
Model IT9388-HT
CPU Multimedia SoC (System-on-Chip)
Flash 128 MB
RAM 512 MB
Camera Features
Image Sensor 1/2.7" Progressive CMOS
Max. Resolution 2560x1920 (5MP)
Lens Type Motorized, Vari-focal, Remote Focus
Focal Length f = 2.8 ~ 12 mm
Aperture F1.4 ~ F2.8
Auto-iris Fixed iris
Field of View 88° ~ 30° (Horizontal)
65° ~ 23° (Vertical)
115° ~ 38°(Diagonal)
Shutter Time 1/5 sec. to 1/32, 000 sec.
WDR Technology WDR Pro
Day/Night Yes
Removable IR-cut Filter Yes
IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination 0.035 lux @ F1.4 (Color)
<0.005 lux @ F1.4 (B/W)
0 lux with IR illumination on
Pan Range 360°
Tilt Range 70°
Rotation Range 360°
Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Built-in Installation Aids Remote focus, remote zoom
Video
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate 20 fps @ 2560x1920
Maximum Streams 3 video streams (Up to 8 configurable profiles)
S/N Ratio 61 dB
Dynamic Range 120 dB
Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings, Illuminators: illuminators, anti-overexposure, Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR, Privacy mask, Scheduled profile settings
Audio
Audio Capability One-way Audio
Audio Compression G.711, G.726
Audio Interface Built-in microphone
Effective Range 5 meters
Network
Users Live viewing for up to 10 clients
Security Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF Profile G, S, T supported
Solution Integration
Video Motion Detection Five-window video motion detection
VADP Package Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
Event Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection
Power Input IEEE 802.3af PoE Class 0
Power Consumption Max. 9.8 W/6.29 W (IR on/off)
Dimensions Ø 120 x 90.5 mm
Weight 625 g
Certifications EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), Environment: IK10 (IEC 62262), IP66 (IEC 60529), IA: BIS (IS 13252)
Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 90%
System Requirements
Operating System Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser Chrome 58.0 or above
Internet Explorer 10/11
Other Players VLC: 1.1.11 or above
Included Accessories
Packing Contents Quick installation guide, alignment sticker, screw pack, cable gland
