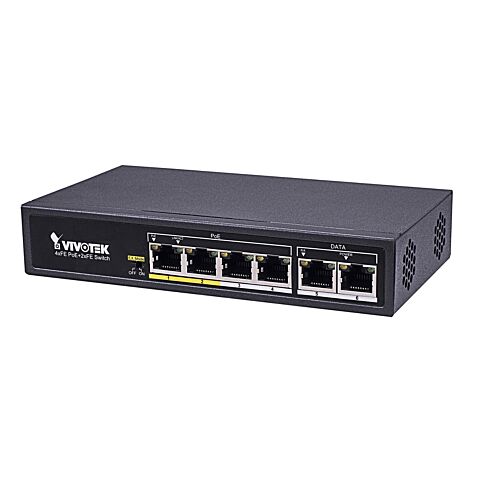

Vivotek Network Switch Fast Ethernet (10/100) Black Power over Ethernet (PoE)

VIVOTEK AW-FET-060C-065. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 2048 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u. Power over Ethernet (PoE)

Description
VIVOTEK’s FE unmanaged PoE switches quipped with DIP switch provides ST STandard and EX EXtend operational modes. They are specially designed for IP Surveillance applications. Besides
standard 802.3af/at PoE functions in ST mode, the EX mode also transmits data & power on one single cable up to 200 meters at 10 Mbps via specific EX ports for long reach PoE IP cameras.
VIVOTEK’s FE unmanaged PoE switches also feature adding an additional 10% range of input voltage tolerance (280VAC 4hr, 300VAC 1min), lightning surge protection of AC power & PoE
surge protection to prevent damage caused by outside unstable AC power, lightning strikes and power spikes. These unique features help to reduce the costs of replacing damaged units.
VIVOTEK’s FE unmanaged PoE switches provide five sub models consisting of 6, 10, 10,18 and 26 ports with a range of power budgets from 60W to 370W for IP surveillance applications.

- 15.4W/30W 802.3af/802.3at compliant
- 20% range of input voltage tolerance (280VAC 4Hr, 300VAC 1min)
- Circuit protection prevents power interference between ports
- Detects PoE PD (power device) automatically
- ST mode reaches PoE camera up to 100M @ 100Mbps via any PoE port
- EX mode reaches 802.3at camera up to 200M @ 10Mbps via EX PoE ports
