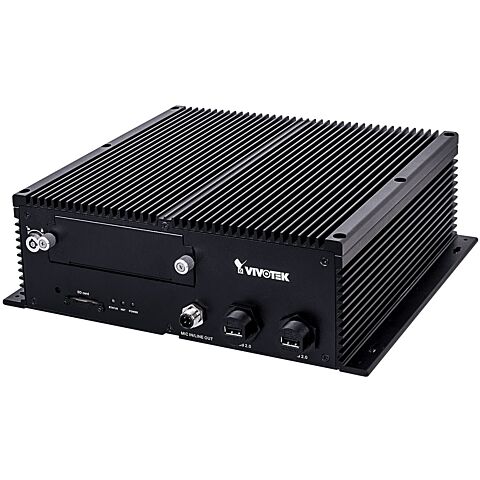

Vivotek NV9311P H.265 8-Ch Embedded mobile NVR

Vivotek NV9311P H.265 8-Ch Embedded mobile NVR, H.265/H.264, 8CH, 8 x PoE, 4K Display, Built-in GNSS Receiver, Built-in G-sensor, WiFi & LTA Options

Overview:

VIVOTEK’s NV9311P is a mobile NVR designed for transportation surveillance and provides 1080p 8-CH real-time live display with recording efficiency using advanced H.265 video compression technology. The 8x 802.3at/af PoE ports provide network connections and power to the network cameras. With a rugged EN50155 and MIL-STD-810G compliant design, the mobile NVR will provide durable and robust protection for all types of vehicle movement.

The NV9311P supports built-in G-sensor and GNSS module to provide information such as G-sensor events and speed events, as well as offering multiple network interfaces such as LAN, WiFi and LTE for different network connection requirements. By implementing VIVOTEK’s VAST 2 software, GPS tracking locations are instantly displayed on Google Maps. Live videos can also be displayed remotely, allowing for instant access for complete safety control.

When installed in vehicles, the mobile NVR supports system power delay on/off and low voltage protection for better system reliability. The NVR also features a wide range of power inputs, an aluminum die-case chassis, a built-in heater, surge protection, and protection from shock and vibration. With an easy-to-install design as well as simple operation and rich features, the NV9311P provides more possibilities for tomorrow's in-vehicle security applications.

Features:

H.265 1080p 8-CH Real-time Live Display
VIVOTEK's Smart Stream II to Optimize Bandwidth Efficiency
4K Display for Clear and Detailed Monitoring
LAN/Wi-Fi/LTE Multiple Network Connections
802.3at/af Compliant PoE port x8 with Management Efficiency
Built-in G-sensor for Vehicle Vibration Alerts
GPS Tracking on Google Maps with VAST 2 VMS
Delay Power Startup/Shutdown and Low Voltage Protection
Built-in Heater for Extreme Temperatures (-40°C ~ 55°C)
EN50155/MIL-STD-810G certified to Ensure Reliability during Vehicle Travel
H.265 1080P Real-time Live Display
Featuring a powerful multi-core SoC to provide 1080p (1920x1080) real-time live display so that users will not miss any information during monitoring, the NVRs also provide H.265 and VIVOTEK’s Smart Stream technology to help greatly save recording capacity than regular H.264 systems.

WiFi and LTE Connection Options
The video stream and data of the Mobile NVRs will be transmitted to the control center remotely for monitoring via WiFi 802.11a/b/g/n/ac or LTE connection.

Built-in G-sensor
Built-in G-sensor for drive safety control. Users can set the sensitivity level and the G-sensor will be triggered in the event of an accident or when extreme vibrations happen.

Fisheye Dewarp
VIVOTEK’s NVR offers both LiveView and Playback modes for one fisheye network camera simultaneously. They also provide multiple fisheye de-warp display modes, including 1O, 1P, 1R, 1O3R, 1O8R, allowing users to monitor any angle, or to enjoy precise detailed images for a total surveillance experience.

GPS Tracking on Google Maps
The embedded GNSS receiver supports GPS, GALILEO and GLONASS systems for different area applications. By remotely using VAST 2 VMS, it allows users to have both live video display and GPS tracking from Google Maps.

Rugged Design for Mobile Surveillance
Compliance with transportation standards EN50155 and MIL-STD-810G, which ensures meeting anti-vibration and anti-shock requirements, and operable in tough conditions such as extreme low temperatures, high humidity, and even surge protection.

Specifications:

Model NV9311P
System
OS Embedded Linux
CPU ARM Processor
Flash 256MB
RAM 2GB
Watchdog Hardware Software
Power Restoration System restart automatically after power recovery
Local Display
Live View Display 8 Channels
Multi-layout display: 1x1, 3V, 2x2, 3x3, 1P 3, 2P 3, 1M 5, 1P 6
Video Output HDMI x1, VGA x1
Display Resolution 3840x2160, 1920x1080, 1280x720
Camera Position Change the view cell position on the Live View screens
Stream Application Constant/Auto adaptive stream
Monitor Enhancement OSD display (NVR), OSD display (camera), camera information
remote I/O control, event notification, aspect ratio
Fisheye Dewarp 1O, 1P, 1R, 1O3R, 1O8R
PTZ Operation Direction control, home, iris, preset, patrol (group), PiP control
Video
Video Format H.265, H.264, MJPEG
Graphics Decoder Hardware decoding
Decoding Resolution H.265: up to 4096x4096
H.264: up to 8192x8192
Decoding Capacity H.265/H.264:
3840x2160 @ 120 fps (4-CH)
1920x1080 @ 480 fps (16-CH)
Audio
Audio Format G.711, G.726
Audio In/Out Mic in (reserved)/Line out x 1
Record
Recording Time (sec.) Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)
Recording Stream Single
Recording Throughput 64Mbps
Recording Mode Continuous, schedule, manual, event, activity adaptive streaming
Recording Setting Recycle (unit: day)
Watermark Supported
Storage
HDD Devices Internal x1 (2.5" HDD/SSD)
HDD Max. Capacity 2TB
Disk Management Create, format, remove disk
HDD S.M.A.R.T.
SD Card SD card slot x1 (reserved)
Backup Schedule backup to FTP server
Playback
Playback Display 4 Channels
Multi-layout display: 1x1, 2x2, 1P 3, 1V 3
Playback Control Regular (play, pause, stop), rewind, next /previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Video Search by calendar, date/time, alarm
Thumbnail Explorer (Storyboard) Listing the thumbnail of recorded video (Max. 2-CH)
Snapshot JPEG
Video Clip Export EXE
Network
Ethernet 10/100/1000Mbps Ethernet (RJ-45) x 1
Video Throughput for Remote Client 96Mbps
WiFi IEEE802.11a/b/g/n/ac 2T2R (optional)
Mobile Network LTE (optional)
PoE 802.3at/af compliant PoE ports x 8 (total Max. 64W)
Please connect an external network switch for further on-line cameras. (Support all VIVOTEK PoE Switches)
PoE Management Supported
Protocols IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
External Interface
USB Front x2 (USB 2.0)
Back x1 (USB 2.0)
Alarm In 8
Alarm Out 4
Audio Mic in (reserved)/Line out x 1
Antenna Interface GPS x1, WiFi x2, LTE x2
RS232 1 port (reserved)
System
Camera Integration ONVIF core spec 2.2 or above (request by project)
GNSS GPS/GALILEO/GLONASS supported
G-sensor Supported
Event Camera: motion detection, PIR detection, tampering detection, DI/DO, disconnection
System: storage abnormal, storage full, DI/DO, GPS disconnected, GPS speed, G-sensor
Event Action Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS
User Management User level: administrator, regular user
Log System, recording, user, error
Date & Time Time zone, manual, automatic sync NTP, daylight saving time
Remote Client
Software AP Shepherd, VAST 2
Mobile/Tablet App iViewer (Android & iOS)
Web Browser Internet Explorer 10 (32 bit) or later/Windows
General
Power Input DC 12V~48V ±10%
Power Management Programmable delay on/off relative to ignition or other switched voltage
Surge Protection Supported
Power Consumption Max. 149 W
Without HDD/SSD and PoE: Max. 15 W (Heater off), Max. 45 W (Heater on)
Dimensions 284 (W) x 230 (D) x 90 (H) mm
Weight 4.06 kg (without HDD)
Operating Temperature -40°C ~ 55°C (-40°F ~ 131°F)
Humidity 0 ~ 95%
Safety Certifications CE, FCC, VCCI, C-Tick, EN50155, EN61373, UL, CB, EN45545, EN50121-3-2/EN50121-4, MIL-STD-810G
