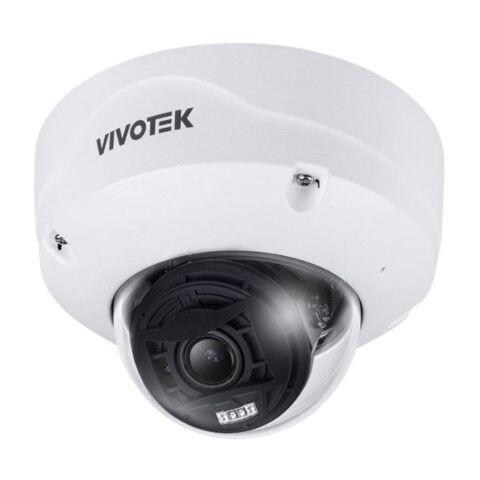

Vivotek FD9387-EHTV-V3(2.7-13.5mm) 5MP Motorized Vari-focal Outdoor Dome Network Camera
Features
30 fps @ 2560x1920
H.265 Compression Technology with Smart Stream III
Installation-friendly Design
Weather-proof IP66, IP67, IP6K9K and Vandal-proof IK10+, NEMA 4X-rated Protection
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Built-in IR Illuminators up to 50M with Smart IR III
Signed Firmware and Secure Boot
AI-powered Smart Motion Detection and Smart VCA
Cyber Protection via Trend Micro IoT Security
An Ideal Blend of Features and Versatility
The 87-V3 is the security solution with a purpose. It brings exceptional value by offering versatile options, superior image quality, advanced analytics, and robust security. It makes the security journey simpler, more effective, and safer.
Diverse Selection with Dependable Performance
Explore a versatile range of focal lengths, effortless installation, and a variety of accessories—unlocking reliable performance tailored to your security needs.
Focal Length Coverage
Thoughtfully crafted to meet a variety of needs, each model is accompanied by both outdoor and indoor versions, simplifying project installations for enhanced convenience.
The shadowed areas within the photos visually approximate the coverage for each range, giving a clear representation of the surveillance capabilities across different focal lengths.
Short Range: 2.7-13.5mm
Mid Range: 7-22mm
Designed for Broad and Easy Installation
Experience the seamless installation process with our 87-V3 Series cameras. These cameras offer standard junction box mounting holes, ensuring unmatched flexibility in setup.
Flagship Housing for Better Weatherproofing
Meticulously designed for superior weatherproofing. These features ensure that the camera is prepared to face diverse weather conditions, maintaining peak performance. Prioritize reliability in any environment with our advanced housing technology.
Smart VCA: AI-Powered Video Analytics on Edge
Empowers cameras to collect more valuable scene awareness data than traditional frame-difference-based video motion detection. Operating as edge-based applications, Smart VCA also minimizes bandwidth and storage usage. Smart VCA is designed to improve efficiency and reduce operators' workloads.
Technical Specification
Model: FD9387-EHTV-V3
CPU: Multimedia SoC (System-on-Chip)
Flash: 8 GB eMMC
RAM: 2 GB DDR4
Image Sensor: 1/2.8" Progressive CMOS
Max. Resolution: 2560 x 1920 (5MP)
Lens Type: Motorized, Vari-focal, Remote Focus
Focal Length: 2.7 - 13.5 mm
Iris Type: P-iris
Field of View: Short range
Horizontal: 100.1° - 29.9°
Vertical: 71.8° - 22.4°
Diagonal: 135.2° - 37.4°
IR Illuminators: Built-in IR illuminators, effective up to 50 meters with Smart IR III, 4x IR LED
Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Audio Capability: Two-way audio (Full duplex)
Audio Interface: Built-in microphone, External microphone Input, External line output
Effective Range: 5 meters
Interface: 10 Base-T/100 Base-TX Ethernet
Power Input: DC 12V ; IEEE 802.3af PoE Class 0 (Power Redundancy) (*Power supplies not included)
